SKU: GE45-KLL-B-INA

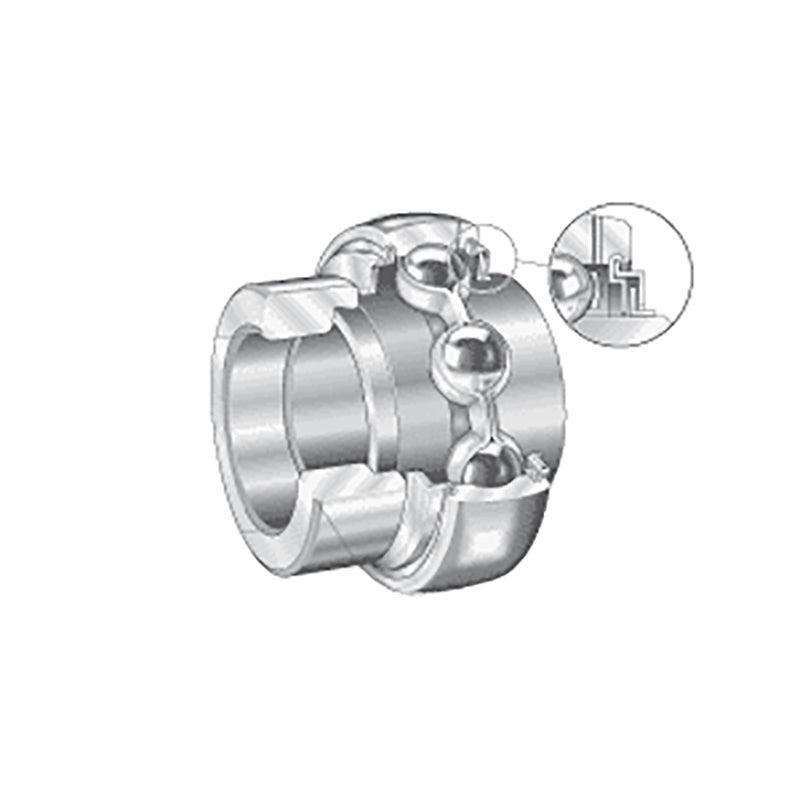

INA GE45XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 45x85x56.5mm
INA GE45XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 45x85x56.5mm
Regular price
£67.27
ex VAT£80.72inc. VAT
Regular price
Sale price
£67.27
ex VAT£80.72
inc. VAT
In stock
Price Break
10+
£59.87
19+
£56.51
29+
£55.83
39+
£55.16
49+
£54.49
74+
£53.82
99+
£50.45
199+
£49.78
249+
£49.11
499+
£48.43
999+
£47.09
Couldn't load pickup availability
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 56.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| d3 max | 63mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.84 kg |
