SKU: GE40ES.EU

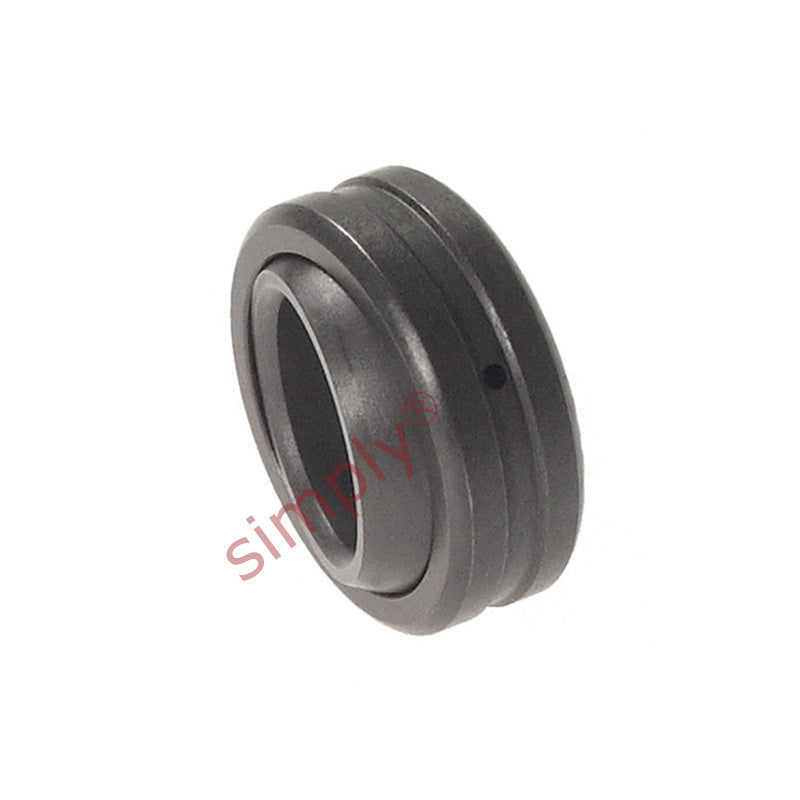

GE40ES Spherical Plain Bearing 40x62x28x22mm
GE40ES Spherical Plain Bearing 40x62x28x22mm
Regular price
£5.87
ex VAT£7.04inc. VAT
Regular price
Sale price
£5.87
ex VAT£7.04
inc. VAT
In stock
Price Break
10+
£5.22
19+
£4.93
29+
£4.87
39+
£4.81
49+
£4.75
74+
£4.70
99+
£4.40
199+
£4.34
249+
£4.29
499+
£4.23
999+
£4.11
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 28mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 28mm |
| C | 22mm |
| dk | 53mm |
| rs min | 0.6mm |
| r1s min | 1mm |
| Angle α | 7° |
| Dynamic load Co | 99 kN |
| Static load Cor | 495 kN |
| Weight | 0.306 kg |
