SKU: GE35ES.EU

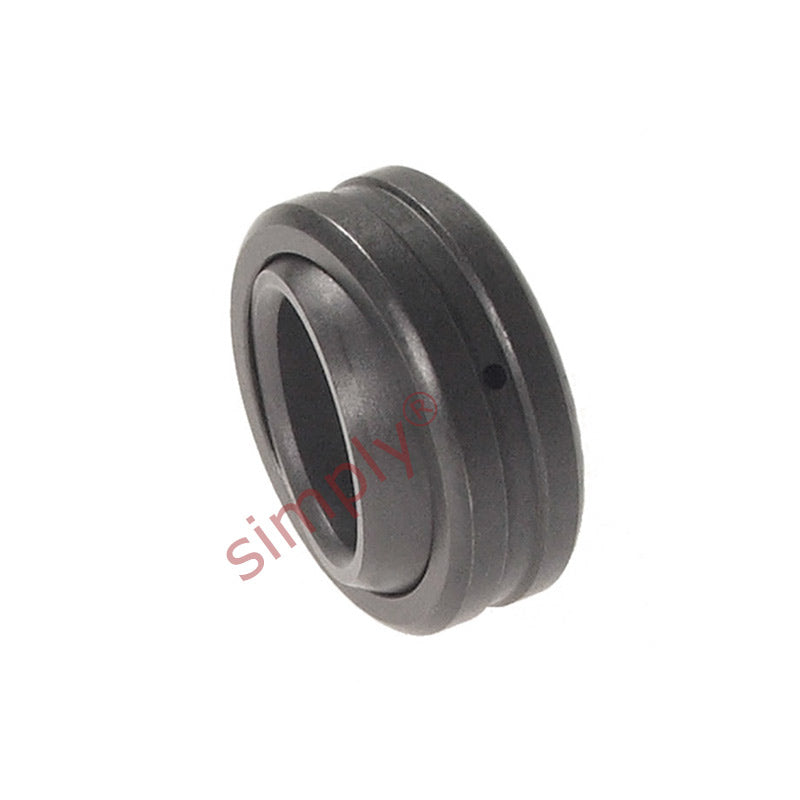

GE35ES Spherical Plain Bearing 35x55x25x20mm
GE35ES Spherical Plain Bearing 35x55x25x20mm
Regular price
£9.79
ex VAT£11.75inc. VAT
Regular price
Sale price
£9.79
ex VAT£11.75
inc. VAT
In stock
Price Break
10+
£8.71
19+
£8.22
29+
£8.13
39+
£8.03
49+
£7.93
74+
£7.83
99+
£7.34
199+
£7.24
249+
£7.15
499+
£7.05
999+
£6.85
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 25mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 25mm |
| C | 20mm |
| dk | 47mm |
| rs min | 0.6mm |
| r1s min | 1mm |
| Angle α | 6° |
| Dynamic load Co | 79 kN |
| Static load Cor | 399 kN |
| Weight | 0.233 kg |
