SKU: GE25-KRR-B-2C-INA

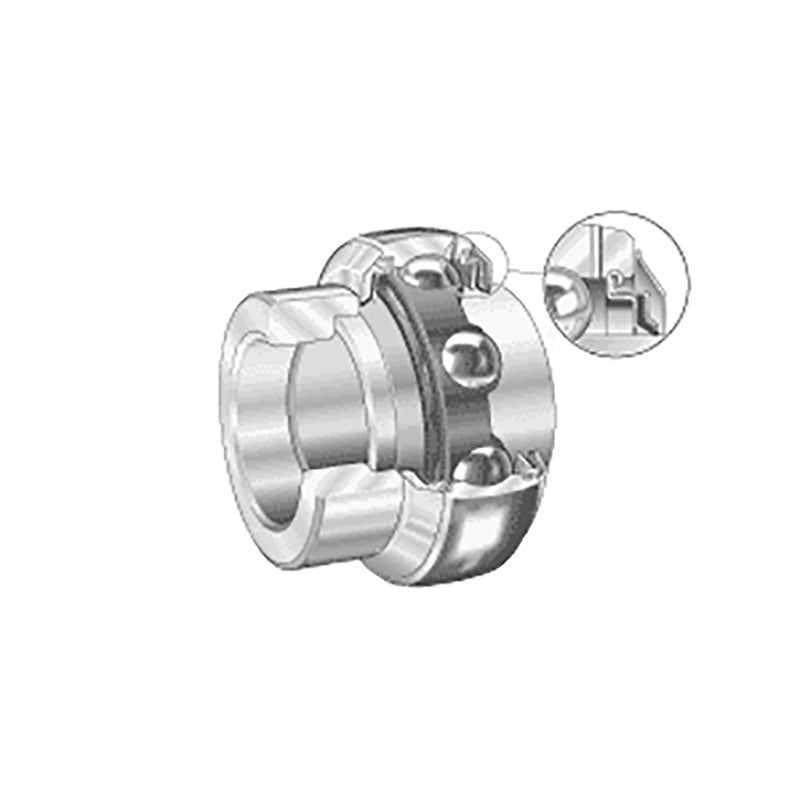

INA GE25KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 25x52x44.5mm
INA GE25KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 25x52x44.5mm
Regular price
£27.34
ex VAT£32.81inc. VAT
Regular price
Sale price
£27.34
ex VAT£32.81
inc. VAT
In stock
Price Break
10+
£24.33
19+
£22.97
29+
£22.69
39+
£22.42
49+
£22.15
74+
£21.87
99+
£20.51
199+
£20.23
249+
£19.96
499+
£19.68
999+
£19.14
Couldn't load pickup availability
Description
Description
|
INA GE..KRR-B-2C Series Inserts: Bearing insert with spherical outer race, R seals with flinger shields and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The R seals are fitted with Corrotect®-coated flinger shields to protect the bearing against mechanical damage. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, flinger shields protect against mechanical damage. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 24.6mm |
| Ca | 3.9mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.26 kg |
