SKU: GE220ES2RS.EU

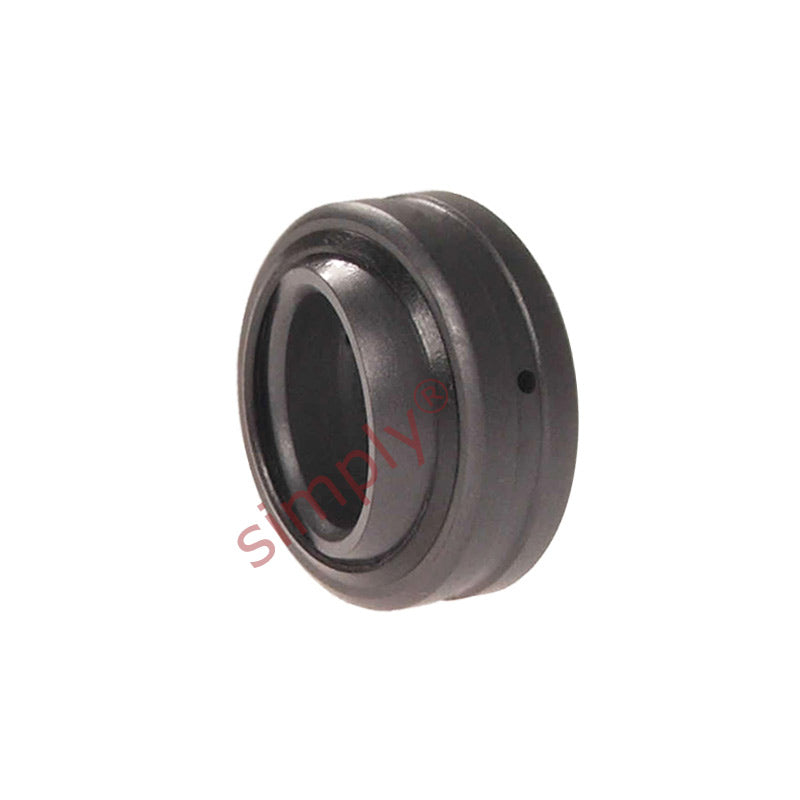

GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
Regular price
£1,516.00
ex VAT£1,819.20inc. VAT
Regular price
Sale price
£1,516.00
ex VAT£1,819.20
inc. VAT
In stock
Price Break
10+
£1,349.24
19+
£1,273.44
29+
£1,258.28
39+
£1,243.12
49+
£1,227.96
74+
£1,212.80
99+
£1,137.00
199+
£1,121.84
249+
£1,106.68
499+
£1,091.52
999+
£1,061.20
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 320mm
- Width:
- 135mm
Technical
Technical
| d | 220mm |
|---|---|
| D | 320mm |
| B | 135mm |
| C | 100mm |
| dk | 275mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 8° |
| Dynamic load Co | 2320 kN |
| Static load Cor | 11600 kN |
| Weight | 35.51 kg |
