SKU: GE20ES.EU

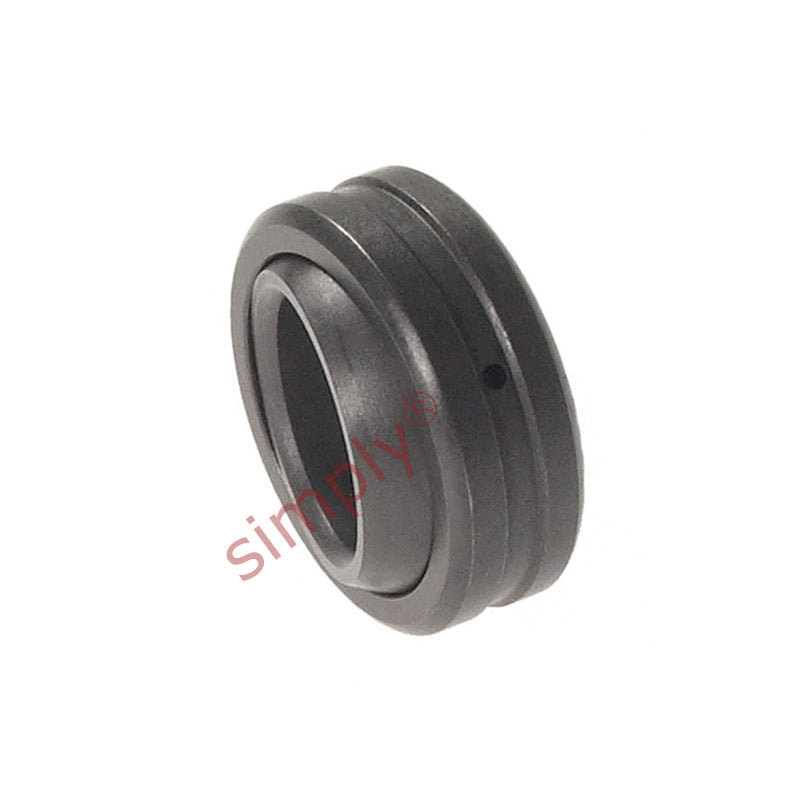

GE20ES Spherical Plain Bearing 20x35x16x12mm
GE20ES Spherical Plain Bearing 20x35x16x12mm
Regular price
£5.88
ex VAT£7.06inc. VAT
Regular price
Sale price
£5.88
ex VAT£7.06
inc. VAT
In stock
Price Break
10+
£5.23
19+
£4.94
29+
£4.88
39+
£4.82
49+
£4.76
74+
£4.71
99+
£4.41
199+
£4.35
249+
£4.29
499+
£4.23
999+
£4.12
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| C | 12mm |
| dk | 29mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 9° |
| Dynamic load Co | 30 kN |
| Static load Cor | 146 kN |
| Weight | 0.066 kg |
