SKU: GE17ES.EU

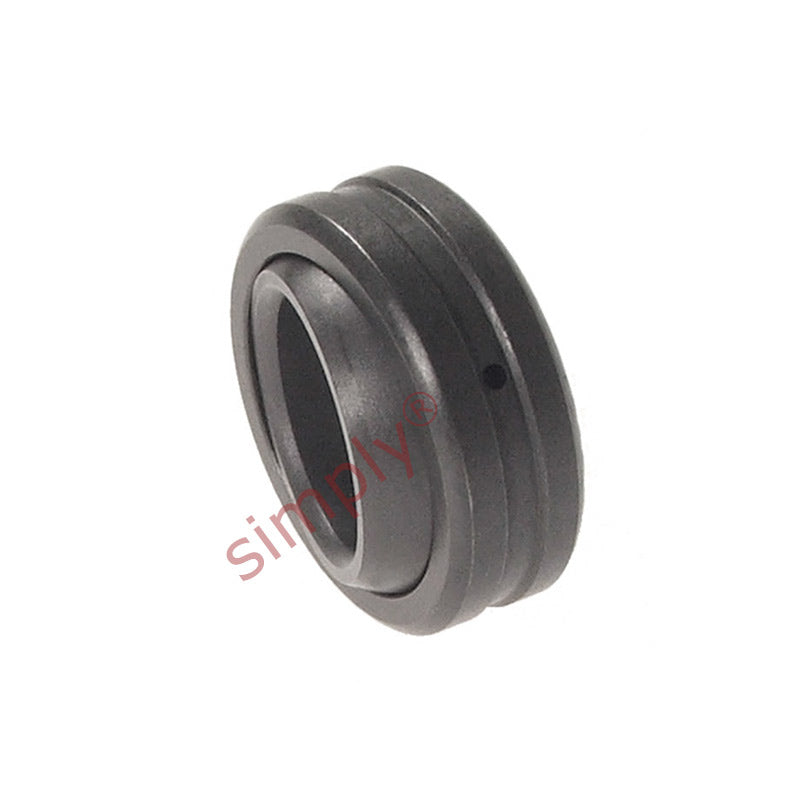

GE17ES Spherical Plain Bearing 17x30x14x10mm
GE17ES Spherical Plain Bearing 17x30x14x10mm
Regular price
£5.96
ex VAT£7.15inc. VAT
Regular price
Sale price
£5.96
ex VAT£7.15
inc. VAT
In stock
Price Break
10+
£5.30
19+
£5.00
29+
£4.94
39+
£4.88
49+
£4.83
74+
£4.77
99+
£4.47
199+
£4.41
249+
£4.35
499+
£4.29
999+
£4.17
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 14mm |
| C | 10mm |
| dk | 25mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 10° |
| Dynamic load Co | 21 kN |
| Static load Cor | 106 kN |
| Weight | 0.041 kg |
