SKU: GE160ES.EU

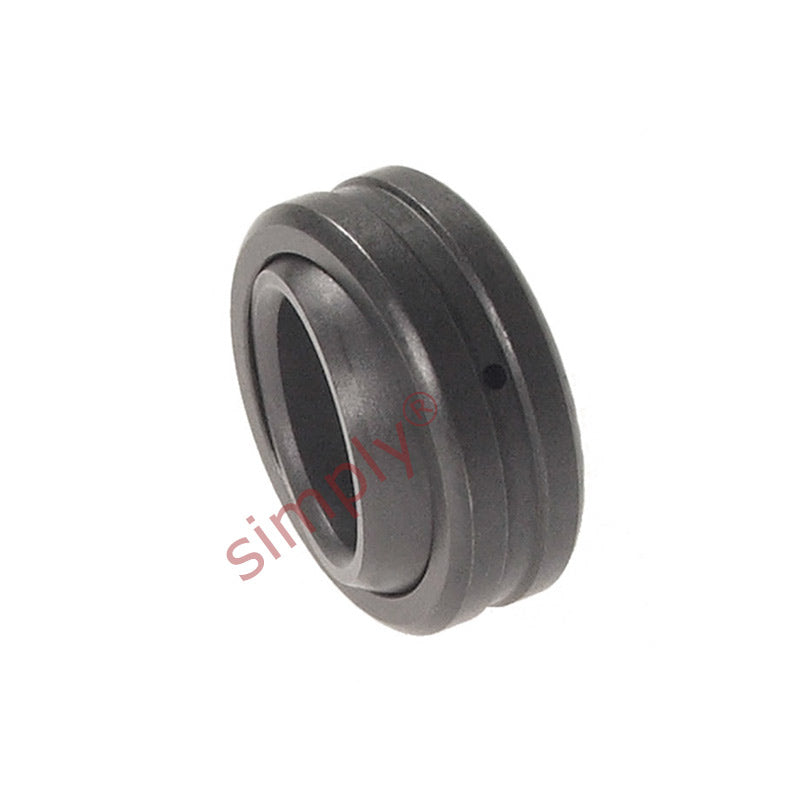

GE160ES Spherical Plain Bearing 160x230x105x80mm
GE160ES Spherical Plain Bearing 160x230x105x80mm
Regular price
£484.26
ex VAT£581.11inc. VAT
Regular price
Sale price
£484.26
ex VAT£581.11
inc. VAT
In stock
Price Break
10+
£430.99
19+
£406.78
29+
£401.94
39+
£397.09
49+
£392.25
74+
£387.41
99+
£363.20
199+
£358.35
249+
£353.51
499+
£348.67
999+
£338.98
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 230mm
- Width:
- 105mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 230mm |
| B | 105mm |
| C | 80mm |
| dk | 200mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 8° |
| Dynamic load Co | 1360 kN |
| Static load Cor | 6800 kN |
| Weight | 14.01 kg |
