SKU: G1568-MB

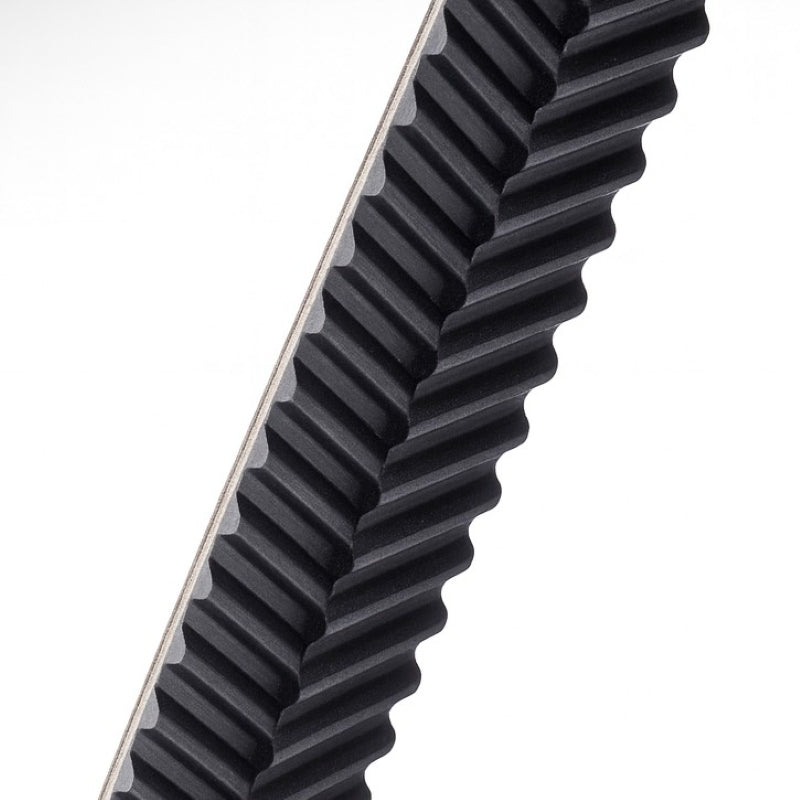

ContiTech G1568 SilentSync Helical Offset Toothed Belt 52.5mm Wide 1568mm Length 112 Teeth Allow 2-3 Days
In stock
Price Break
Description
ContiTech SilentSync Timing Belts: The ContiTech SilentSync is a high-performance, self-tracking timing belt engineered for exceptionally quiet, low-vibration operations and is ideal for horizontal drive systems. Featuring a patented Helical Offset Tooth (HOT) design, this belt offers up to 80% more power transmission and operates up to 19 dB quieter than standard straight-toothed belts.
Built with an aramid tension member, synthetic rubber body, and special fabric tooth surface, SilentSync delivers superior strength, durability, and heat resistance (from -30 Degrees C to +130 Degrees C). It is electrically conductive (ISO 9563 compliant), ozone- and aging-resistant, and maintenance-free.
SilentSync belts set a new standard for quiet, efficient, and reliable power transmission in demanding industrial applications.
Benefits: Continuous tooth engagement, improved alignment, maintenance free
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 52.5mm
- Belt Length Approx:
- 1568mm
- Number of Teeth:
- 112
Technical
| Belt Length | 1568mm |
|---|---|
| Belt Width | 52.5mm |
| Number of Teeth | 112 |
| Tooth Pitch - t | 14mm |
| Tooth Surface | Specially Treated Fabric |
| Tooth Material | Synthetic Rubber |
| Belt Backing Material | Synthetic Rubber |
| Tension Member | Aramid |
| Temperature Range | -30 to 130 Deg C |
| Colour | Green |
| Weight | 0.555kg |
