SKU: G1/4-KF

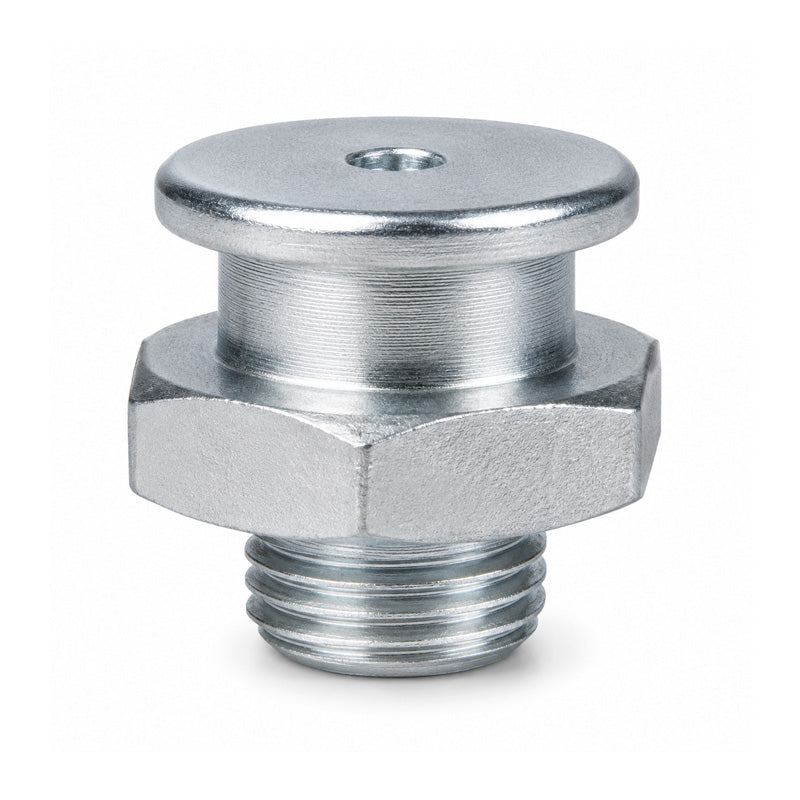

G1/4 BSPF DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings - Pack of 500
G1/4 BSPF DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings - Pack of 500
Regular price
£206.62
ex VAT£247.94inc. VAT
Regular price
Sale price
£206.62
ex VAT£247.94
inc. VAT
In stock
Price Break
10+
£183.89
19+
£173.56
29+
£171.49
39+
£169.43
49+
£167.36
74+
£165.29
99+
£154.96
199+
£152.90
249+
£150.83
499+
£148.76
999+
£144.63
Description
Description
Button Head Grease Fittings: Kingfisher superior button head fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. Amongst our range of button head fittings there are fittings of different sizes and also thread types.
Benefits: Corrosion resistance, large range available, cost effective.
Benefits: Corrosion resistance, large range available, cost effective.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- BSPF G1/4
- Thread Length:
- 5.84mm = 0.23 inch
- Length:
- 16.76mm = 0.66 inch
- Angle:
- Straight
Technical
Technical
| --- | BSPF Thread (British Standard Pipe Fastening) |
|---|---|
| Recommended To Fit | BSPF G1/4 |
| Total Length A | 16.76mm = 0.66 inch |
| Thread Length B | 5.84mm = 0.23 inch |
| Nipple Angle | Straight |
| Required Tool Size (Hex Size) | 17mm |
| Colour | White |
| Weight | 0.02 kg |
