SKU: FYTJ40TF-SKF

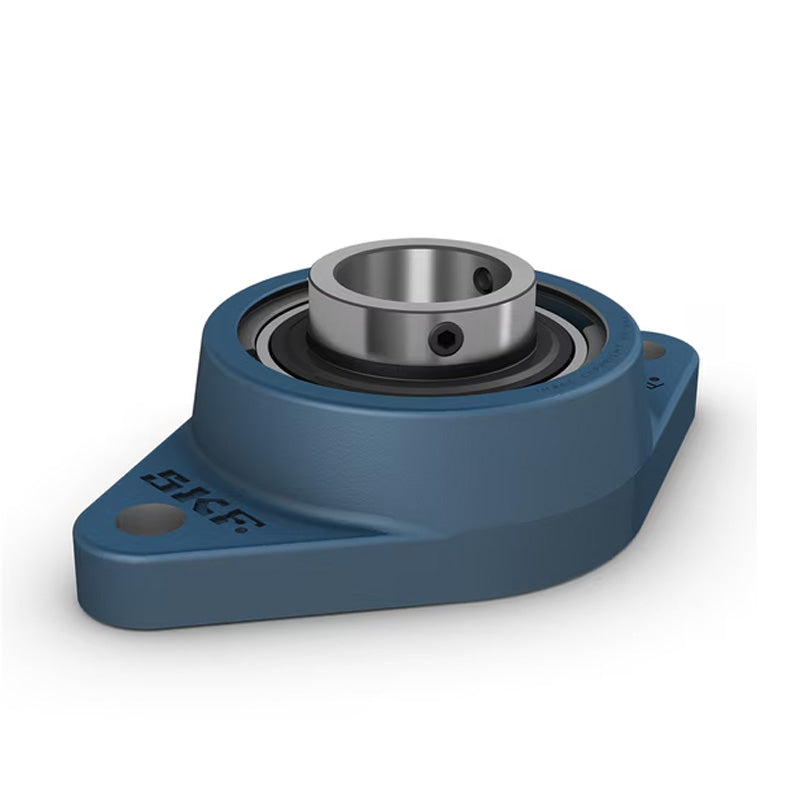

SKF FYTJ40TF Oval Cast Housing with Grub Screw 40mm Insert
SKF FYTJ40TF Oval Cast Housing with Grub Screw 40mm Insert
Regular price
£71.37
ex VAT£85.64inc. VAT
Regular price
Sale price
£71.37
ex VAT£85.64
inc. VAT
In stock
Price Break
10+
£63.52
20+
£59.95
30+
£59.24
40+
£58.53
50+
£57.81
75+
£57.10
100+
£53.53
200+
£52.82
250+
£52.10
500+
£51.39
1000+
£49.96
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 36mm |
| A2 | 16mm |
| B | 49.2mm |
| Da | 88.9mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 51.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.55 kg |
