SKU: FYTB40FM-SKF

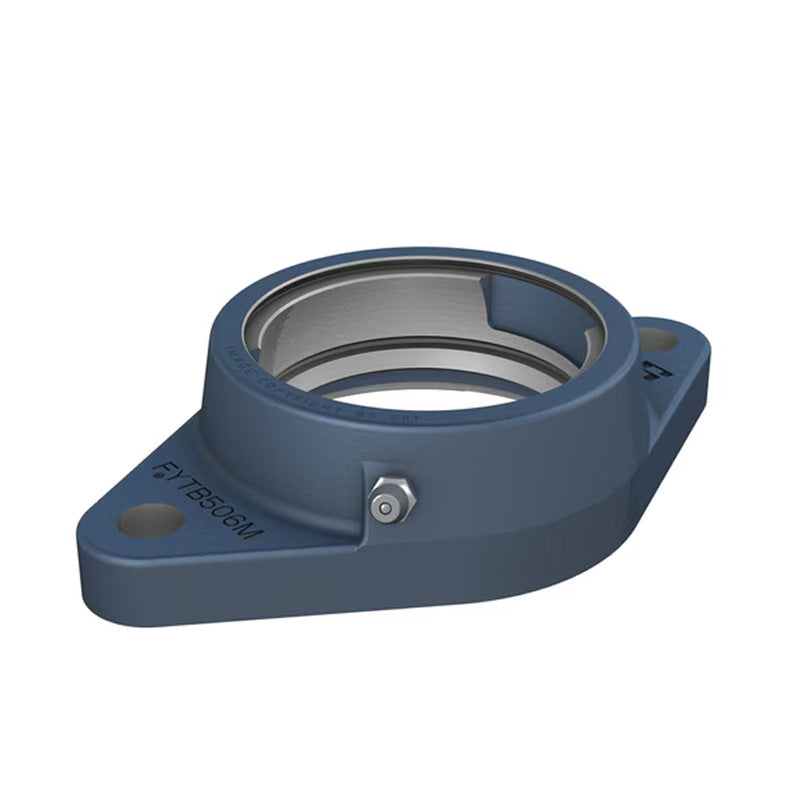

SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
Regular price
£61.69
ex VAT£74.03inc. VAT
Regular price
Sale price
£61.69
ex VAT£74.03
inc. VAT
In stock
Price Break
10+
£54.90
19+
£51.82
29+
£51.20
39+
£50.59
49+
£49.97
74+
£49.35
99+
£46.27
199+
£45.65
249+
£45.03
499+
£44.42
999+
£43.18
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTB
- Bolt Hole Centres:
- 143.5mm

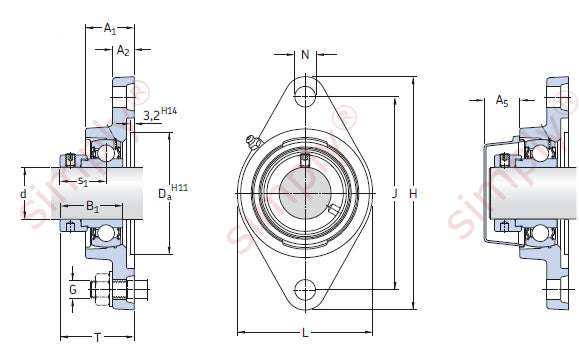

Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B1 | 43.7mm |
| Da | 88.9mm |
| H | 171.5mm |
| J | 143.5mm |
| L | 102mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.7mm |
| T | 56.7mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 1.7 kg |
| Compatible end cover closed | ECY208 |
