SKU: FYTB35WF-SKF

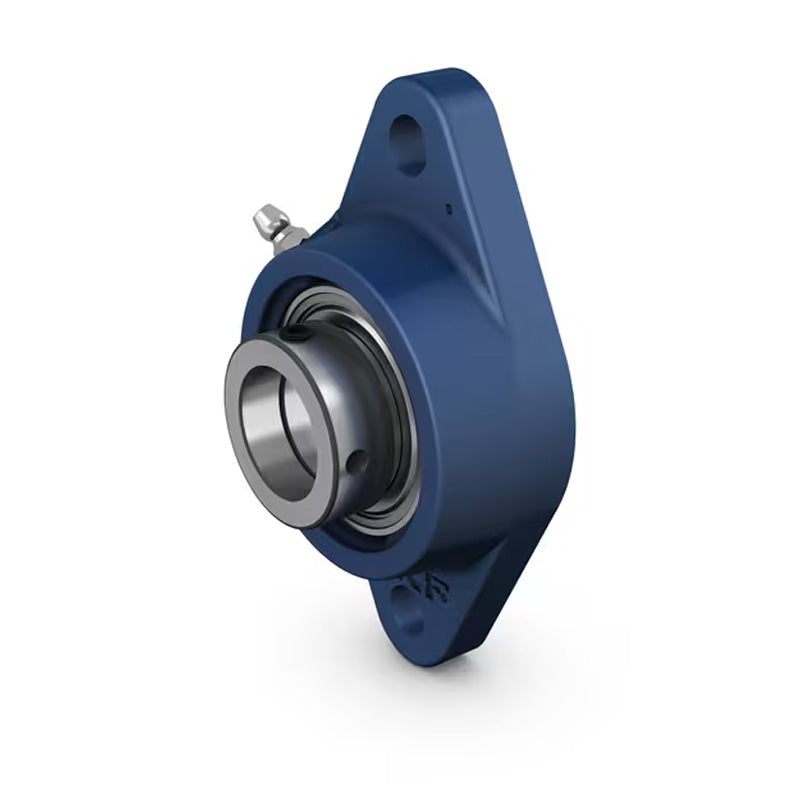

SKF FYTB35WF Oval Cast Housing with Eccentric Collar 35mm Insert
SKF FYTB35WF Oval Cast Housing with Eccentric Collar 35mm Insert
Regular price
£71.05
ex VAT£85.26inc. VAT
Regular price
Sale price
£71.05
ex VAT£85.26
inc. VAT
In stock
Price Break
10+
£63.23
19+
£59.68
29+
£58.97
39+
£58.26
49+
£57.55
74+
£56.84
99+
£53.29
199+
£52.58
249+
£51.87
499+
£51.16
999+
£49.74
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Eccentric Collar: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYTB
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B1 | 51.1mm |
| Da | 88.9mm |
| H | 156mm |
| J | 130mm |
| L | 96mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.3mm |
| T | 53.3mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.4 kg |
| Compatible end cover closed | ECY207 |
