SKU: FYTB25WF-SKF

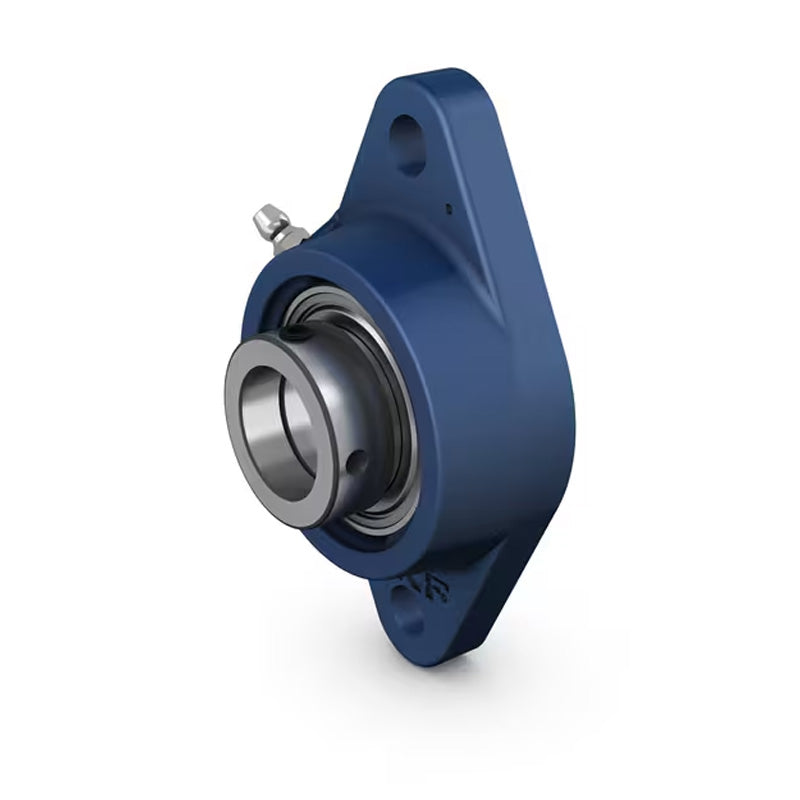

SKF FYTB25WF Oval Cast Housing with Grub Screw 25mm Insert
SKF FYTB25WF Oval Cast Housing with Grub Screw 25mm Insert
Regular price
£52.12
ex VAT£62.54inc. VAT
Regular price
Sale price
£52.12
ex VAT£62.54
inc. VAT
In stock
Price Break
10+
£46.39
20+
£43.78
30+
£43.26
40+
£42.74
50+
£42.22
75+
£41.70
100+
£39.09
200+
£38.57
250+
£38.05
500+
£37.53
1000+
£36.49
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTB
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B1 | 44.4mm |
| Da | 63.5mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.9mm |
| T | 45.9mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.69 kg |
| Compatible end cover closed | ECY205 |
