SKU: FYTB25TF-SKF

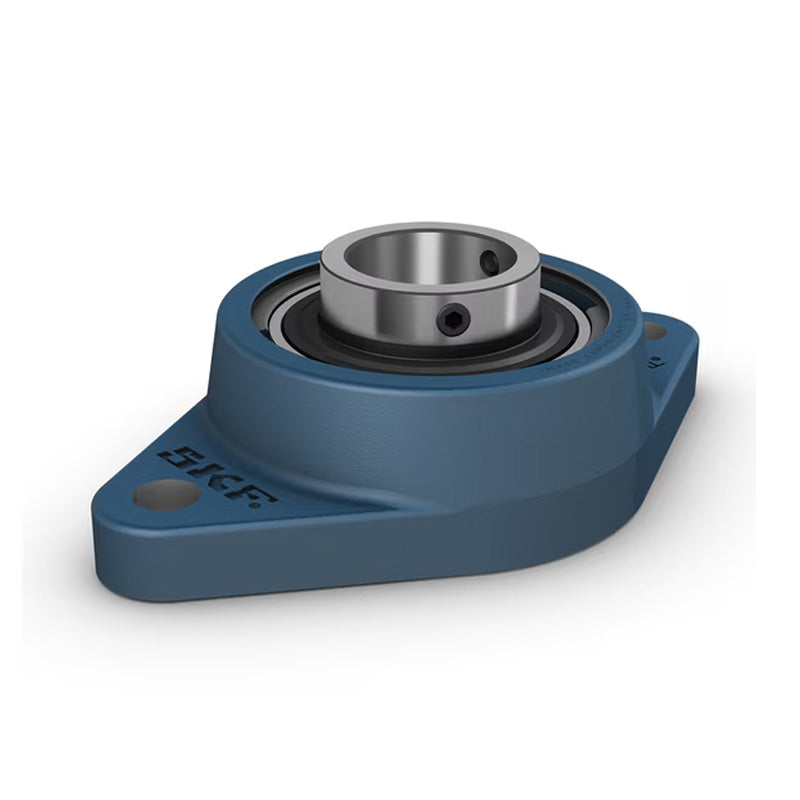

SKF FYTB25TF Oval Cast Housing with Grub Screw 25mm Insert
SKF FYTB25TF Oval Cast Housing with Grub Screw 25mm Insert
Regular price
£41.60
ex VAT£49.92inc. VAT
Regular price
Sale price
£41.60
ex VAT£49.92
inc. VAT
In stock
Price Break
10+
£37.02
20+
£34.94
30+
£34.53
40+
£34.11
50+
£33.70
75+
£33.28
100+
£31.20
200+
£30.78
250+
£30.37
500+
£29.95
1000+
£29.12
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTB
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| Da | 63.5mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.63 kg |
| Compatible end cover closed | ECY205 |
