SKU: FYTB17FM-SKF

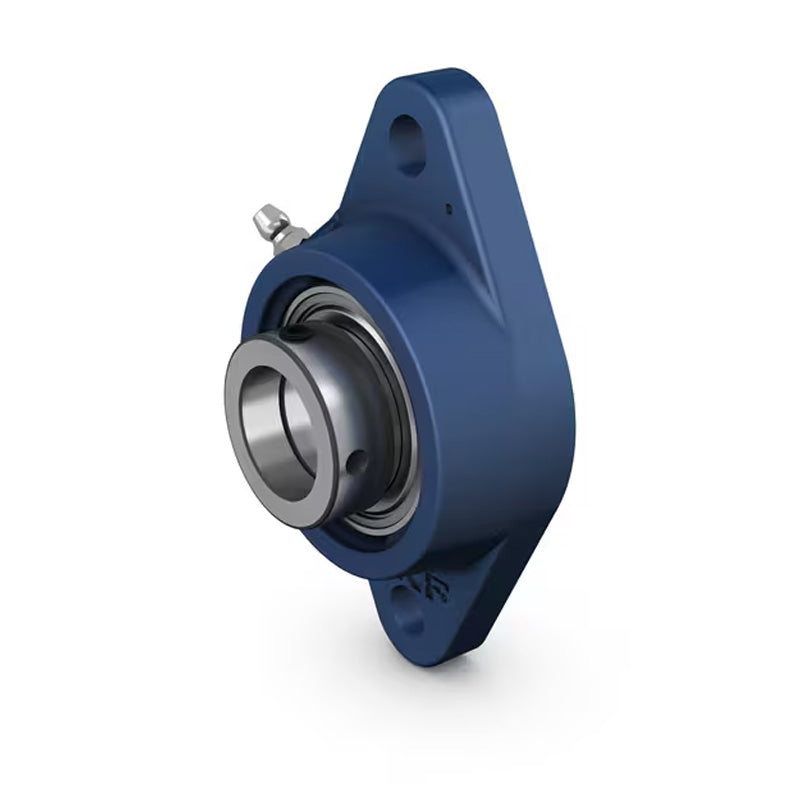

SKF FYTB17FM Oval Cast Housing with Grub Screw 17mm Insert
SKF FYTB17FM Oval Cast Housing with Grub Screw 17mm Insert
Regular price
£37.02
ex VAT£44.42inc. VAT
Regular price
Sale price
£37.02
ex VAT£44.42
inc. VAT
In stock
Price Break
10+
£32.95
20+
£31.10
30+
£30.73
40+
£30.36
50+
£29.99
75+
£29.62
100+
£27.76
200+
£27.39
250+
£27.02
500+
£26.65
1000+
£25.91
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Style:
- FYTB
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| d | 17mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B1 | 28.6mm |
| Da | 50.8mm |
| H | 98.5mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 22.1mm |
| T | 39.1mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.41 kg |
