SKU: FYT45TF/VA201-SKF

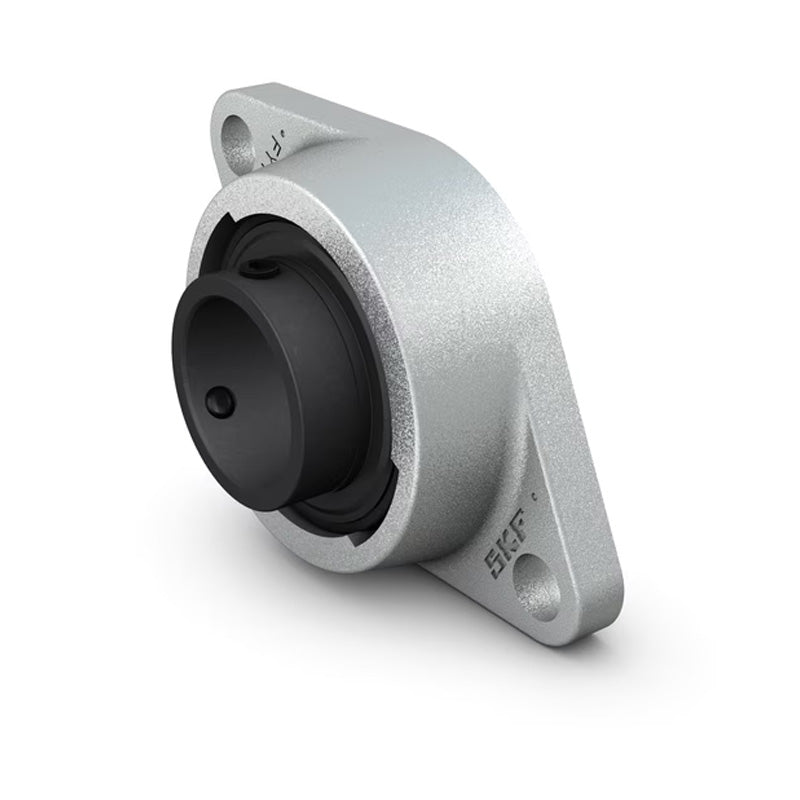

SKF FYT45TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
SKF FYT45TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
Regular price
£253.18
ex VAT£303.82inc. VAT
Regular price
Sale price
£253.18
ex VAT£303.82
inc. VAT
In stock
Price Break
10+
£225.33
19+
£212.67
29+
£210.14
39+
£207.61
49+
£205.08
74+
£202.55
99+
£189.89
199+
£187.36
249+
£184.82
499+
£182.29
999+
£177.23
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 178.5mm |
| J | 148.5mm |
| L | 111mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 1.8 kg |
