SKU: FYT30TF/VA228-SKF

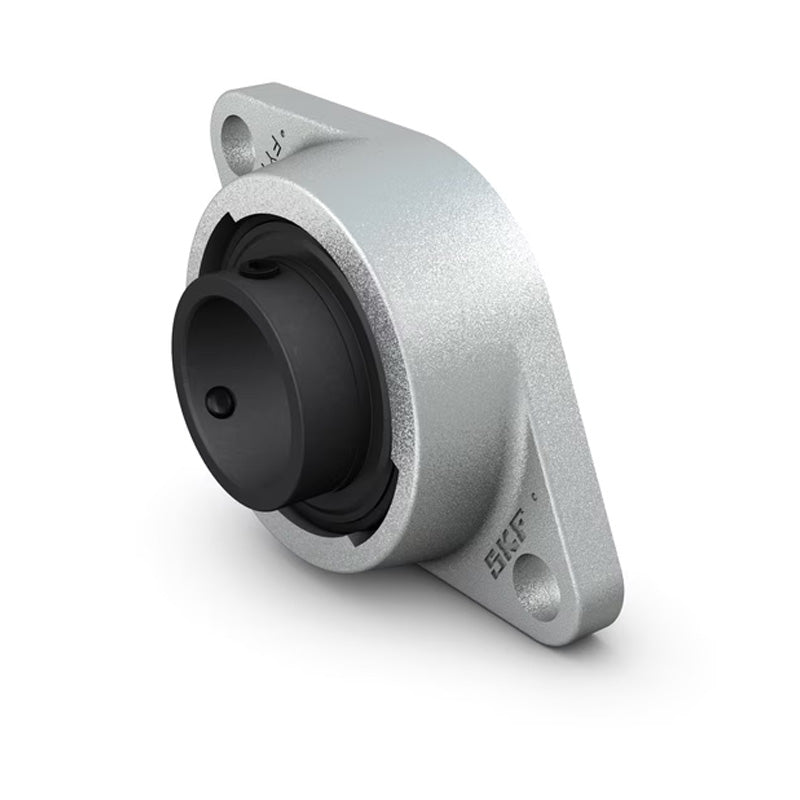

SKF FYT30TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
SKF FYT30TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
Regular price
£199.13
ex VAT£238.96inc. VAT
Regular price
Sale price
£199.13
ex VAT£238.96
inc. VAT
In stock
Price Break
10+
£177.23
19+
£167.27
29+
£165.28
39+
£163.29
49+
£161.30
74+
£159.30
99+
£149.35
199+
£147.36
249+
£145.36
499+
£143.37
999+
£139.39
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| H | 141.5mm |
| J | 116.7mm |
| L | 83mm |
| N | 12.7mm |
| G | 10mm |
| T | 42.2mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 0.93 kg |
