SKU: FYT25TF/VA228-SKF

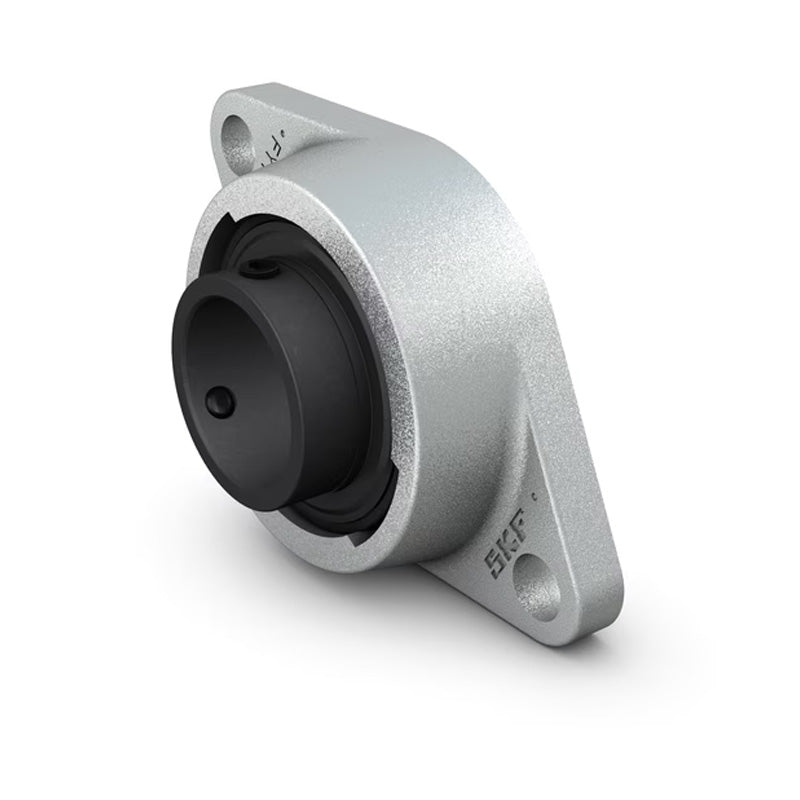

SKF FYT25TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 25mm
SKF FYT25TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 25mm
Regular price
£130.17
ex VAT£156.20inc. VAT
Regular price
Sale price
£130.17
ex VAT£156.20
inc. VAT
In stock
Price Break
10+
£115.85
19+
£109.34
29+
£108.04
39+
£106.74
49+
£105.44
74+
£104.14
99+
£97.63
199+
£96.33
249+
£95.02
499+
£93.72
999+
£91.12
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| H | 124mm |
| J | 98.9mm |
| L | 70mm |
| N | 12.7mm |
| G | 10mm |
| T | 38.8mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.63 kg |
