SKU: FYT15/16TF-SKF

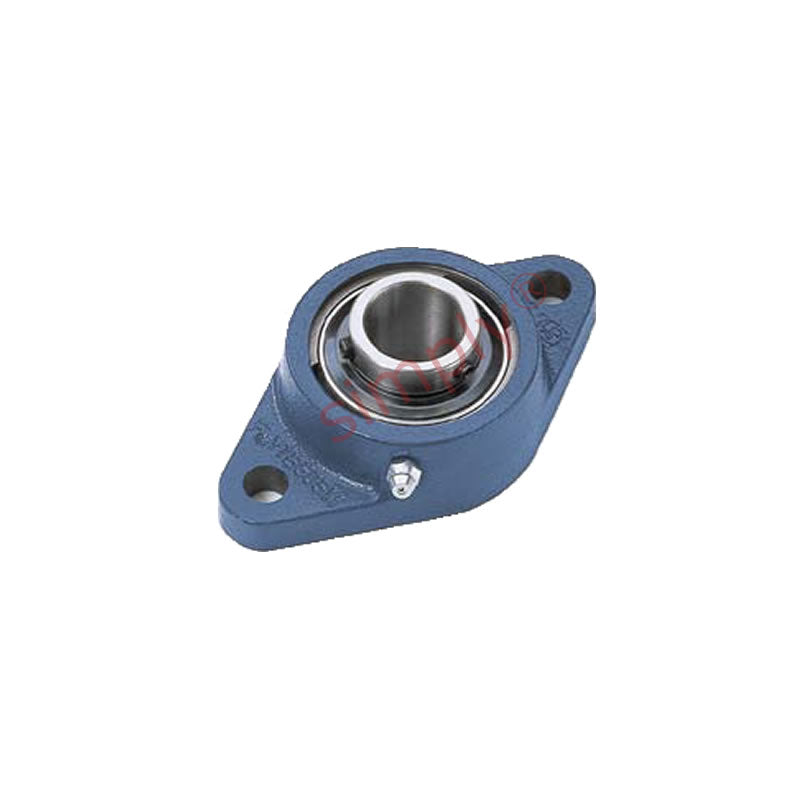

SKF FYT15/16TF Oval Cast Housing with Grub Screw 15/16 inch Insert
SKF FYT15/16TF Oval Cast Housing with Grub Screw 15/16 inch Insert
Regular price
£42.46
ex VAT£50.95inc. VAT
Regular price
Sale price
£42.46
ex VAT£50.95
inc. VAT
In stock
Price Break
10+
£37.79
20+
£35.66
30+
£35.24
40+
£34.81
50+
£34.39
75+
£33.96
100+
£31.84
200+
£31.42
250+
£30.99
500+
£30.57
1000+
£29.72
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 98.8mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| H | 124mm |
| J | 98.8mm |
| L | 70mm |
| N | 12.7mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.64 kg |
| Housing | Insert |
