SKU: FYT1.1/2RM-SKF

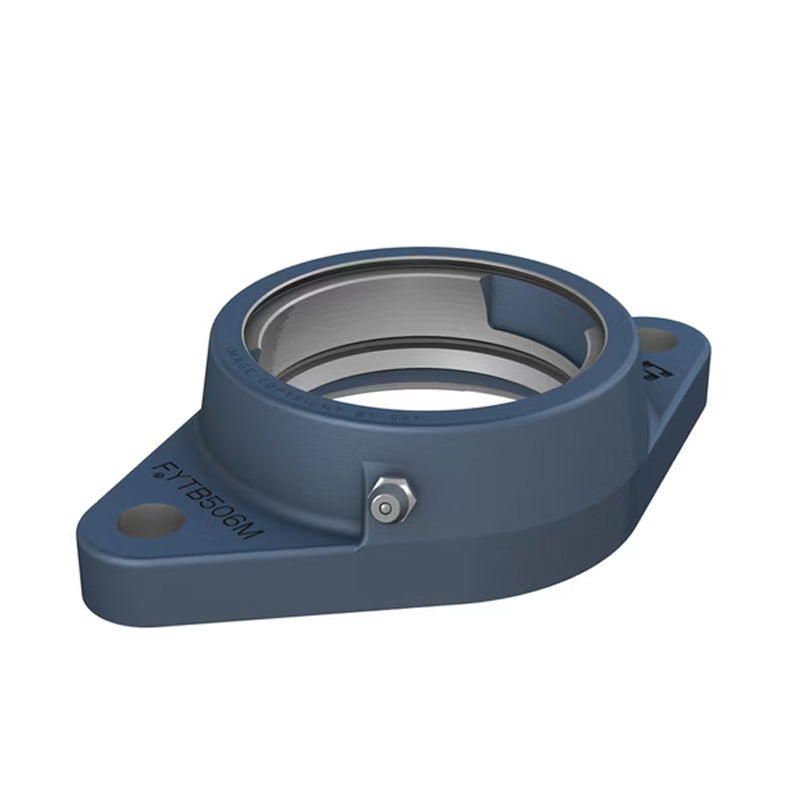

SKF FYT1-1/2RM Oval Cast Housing with Grub Screw 1-1/2 inch Insert
SKF FYT1-1/2RM Oval Cast Housing with Grub Screw 1-1/2 inch Insert
Regular price
£60.93
ex VAT£73.12inc. VAT
Regular price
Sale price
£60.93
ex VAT£73.12
inc. VAT
In stock
Price Break
10+
£54.23
20+
£51.18
30+
£50.57
40+
£49.96
50+
£49.35
75+
£48.74
100+
£45.70
200+
£45.09
250+
£44.48
500+
£43.87
1000+
£42.65
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FYT
- Bolt Hole Centres:
- 143.7mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 40mm |
| H | 171.5mm |
| J | 143.7mm |
| L | 102mm |
| N | 14.3mm |
| G | 12mm |
| s1 | 28.5mm |
| T | 52.6mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.6 kg |
| Housing | Insert |
