SKU: FYJ75TF-SKF

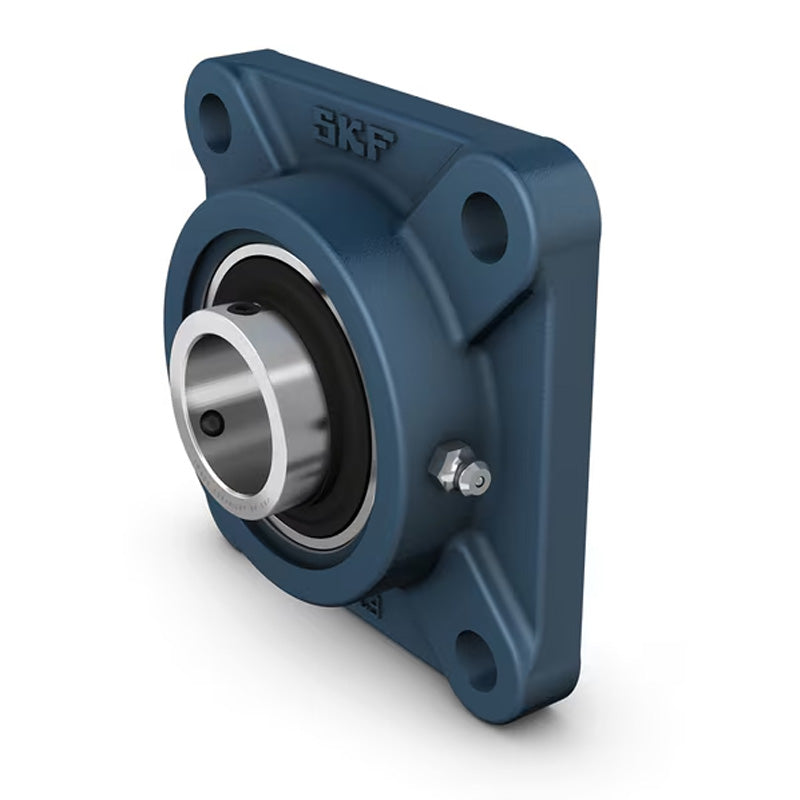

SKF FYJ75TF Square Cast Housing with Grub Screw 75mm Insert
SKF FYJ75TF Square Cast Housing with Grub Screw 75mm Insert
Regular price
£322.97
ex VAT£387.56inc. VAT
Regular price
Sale price
£322.97
ex VAT£387.56
inc. VAT
In stock
Price Break
10+
£287.44
20+
£271.29
30+
£268.06
40+
£264.83
50+
£261.60
75+
£258.37
100+
£242.23
200+
£239.00
250+
£235.77
500+
£232.54
1000+
£226.08
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Style:
- FYJ
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 75mm |
|---|---|
| A1 | 53.6mm |
| A2 | 22.1mm |
| B | 73.1mm |
| Da | 179.4mm |
| J | 159mm |
| L | 200mm |
| N | 19mm |
| G | 16mm |
| s1 | 46.1mm |
| T | 80.1mm |
| Static load Cr | 49 kN |
| Dynamic load Cor | 66.3 kN |
| Fatigue load limit Pu | 2.04 kN |
| Limiting speed | 2600 rpm |
| Weight | 6.8 kg |
