SKU: FYJ65TF-SKF

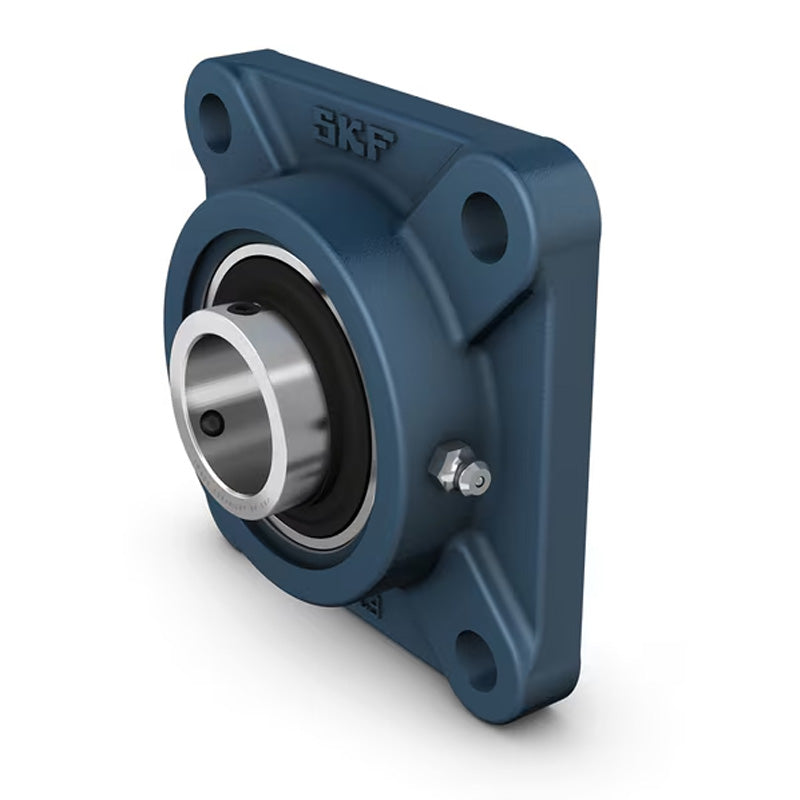

SKF FYJ65TF Square Cast Housing with Grub Screw 65mm Insert
SKF FYJ65TF Square Cast Housing with Grub Screw 65mm Insert
Regular price
£195.02
ex VAT£234.02inc. VAT
Regular price
Sale price
£195.02
ex VAT£234.02
inc. VAT
In stock
Price Break
10+
£173.57
19+
£163.82
29+
£161.87
39+
£159.92
49+
£157.97
74+
£156.02
99+
£146.27
199+
£144.31
249+
£142.36
499+
£140.41
999+
£136.51
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Style:
- FYJ
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 65mm |
|---|---|
| A1 | 50mm |
| A2 | 22mm |
| B | 68.3mm |
| Da | 161.9mm |
| J | 149mm |
| L | 187mm |
| N | 19mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 72.9mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| A5 | 35.5mm |
| Weight | 5.8 kg |
| Compatible end cover closed | ECY213 |
