SKU: FYJ45TF-SKF

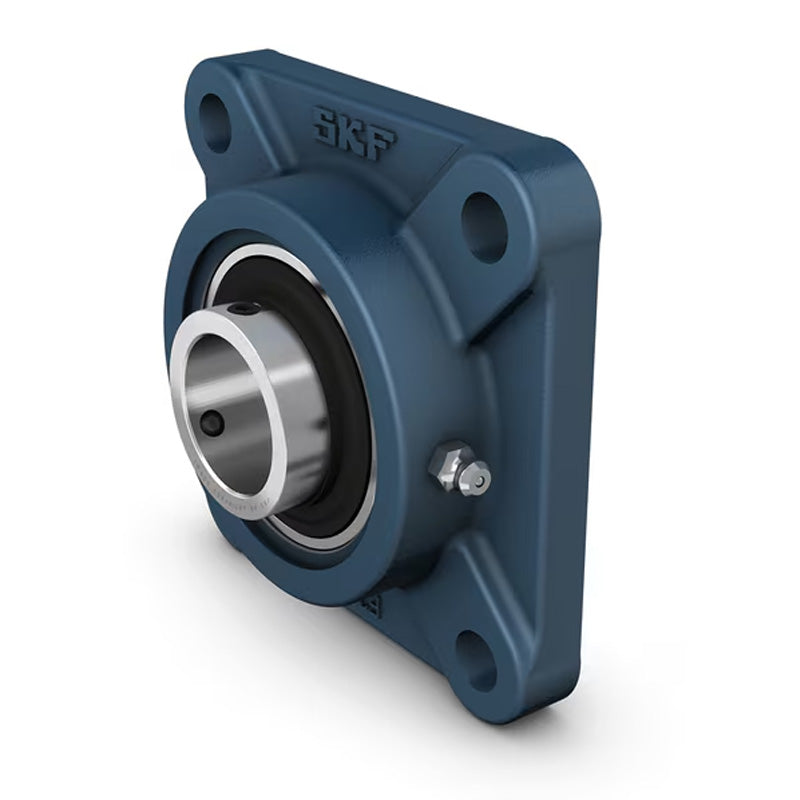

SKF FYJ45TF Square Cast Housing with Grub Screw 45mm Insert
SKF FYJ45TF Square Cast Housing with Grub Screw 45mm Insert
Regular price
£48.07
ex VAT£57.68inc. VAT
Regular price
Sale price
£48.07
ex VAT£57.68
inc. VAT
In stock
Price Break
10+
£42.78
20+
£40.38
30+
£39.90
40+
£39.42
50+
£38.94
75+
£38.46
100+
£36.05
200+
£35.57
250+
£35.09
500+
£34.61
1000+
£33.65
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYJ
- Bolt Hole Centres:
- 105mm
Technical
Technical

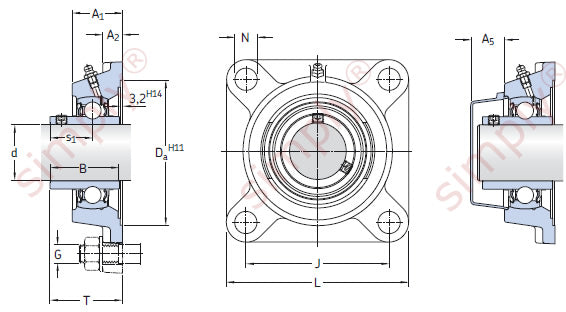

| d | 45mm |
|---|---|
| A1 | 38mm |
| A2 | 16mm |
| B | 49.2mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 52.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.45 kg |
