SKU: FYJ40TF-SKF

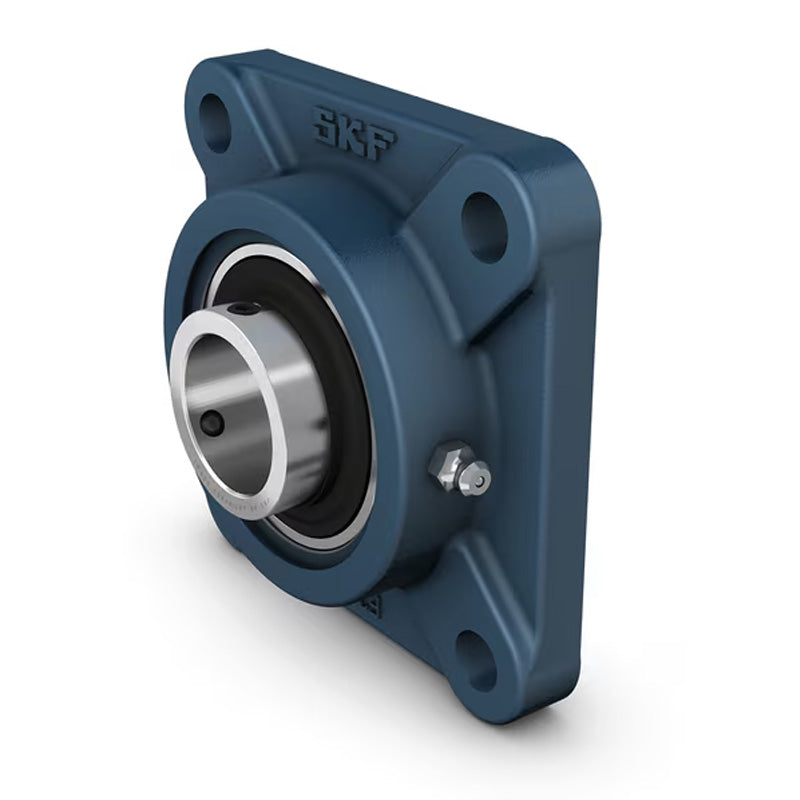

SKF FYJ40TF Square Cast Housing with Grub Screw 40mm Insert
SKF FYJ40TF Square Cast Housing with Grub Screw 40mm Insert
Regular price
£68.93
ex VAT£82.72inc. VAT
Regular price
Sale price
£68.93
ex VAT£82.72
inc. VAT
In stock
Price Break
10+
£61.34
20+
£57.90
30+
£57.21
40+
£56.52
50+
£55.83
75+
£55.14
100+
£51.70
200+
£51.01
250+
£50.32
500+
£49.63
1000+
£48.25
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYJ
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 36mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 115.9mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 51.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.8 kg |
