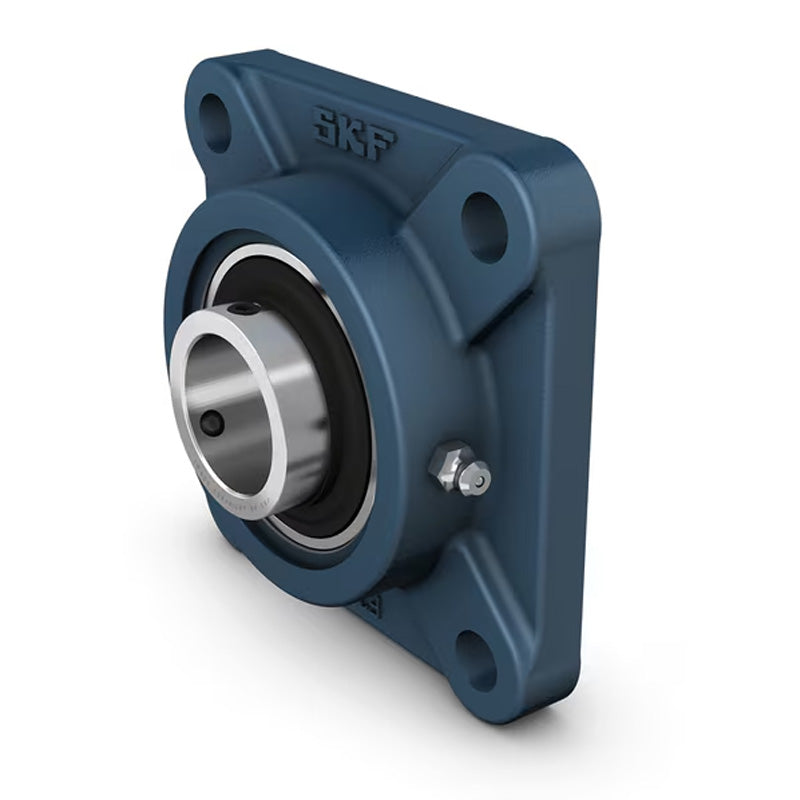

SKF FYJ35TF Square Cast Housing with Grub Screw 35mm Insert
SKF FYJ35TF Square Cast Housing with Grub Screw 35mm Insert
Regular price
£59.66
ex VAT£71.59inc. VAT
Regular price
Sale price
£59.66
ex VAT£71.59
inc. VAT
In stock
Price Break
10+
£53.09
20+
£50.11
30+
£49.51
40+
£48.92
50+
£48.32
75+
£47.72
100+
£44.74
200+
£44.15
250+
£43.55
500+
£42.95
1000+
£41.76
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYJ
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34mm |
| A2 | 13mm |
| B | 42.9mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 44.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.5 kg |
