SKU: FYJ25TF-SKF

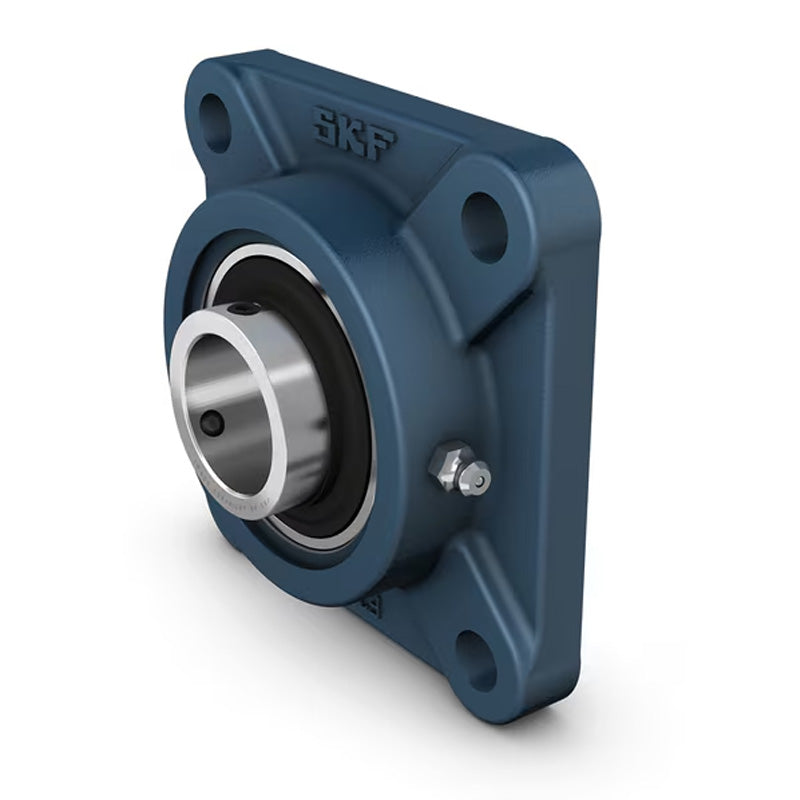

SKF FYJ25TF Square Cast Housing with Grub Screw 25mm Insert
SKF FYJ25TF Square Cast Housing with Grub Screw 25mm Insert
Regular price
£40.79
ex VAT£48.95inc. VAT
Regular price
Sale price
£40.79
ex VAT£48.95
inc. VAT
In stock
Price Break
10+
£36.30
20+
£34.26
30+
£33.86
40+
£33.45
50+
£33.04
75+
£32.63
100+
£30.59
200+
£30.18
250+
£29.78
500+
£29.37
1000+
£28.55
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYJ
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 27mm |
| A2 | 12mm |
| B | 34.1mm |
| Da | 74.6mm |
| J | 70mm |
| L | 95mm |
| N | 12mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 35.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.86 kg |
