SKU: FYC60TF-SKF

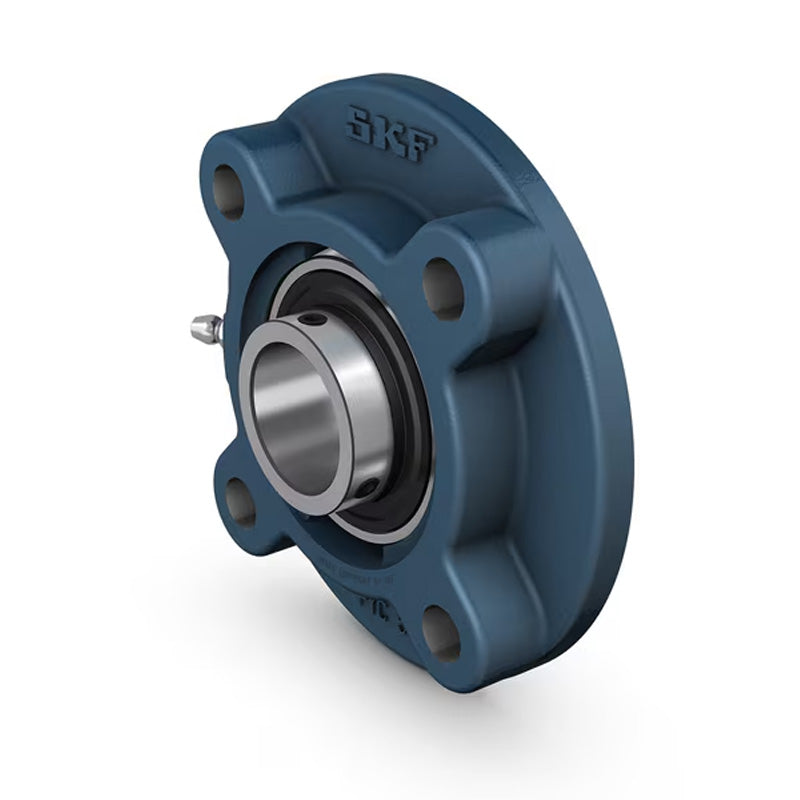

SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
Regular price
£166.55
ex VAT£199.86inc. VAT
Regular price
Sale price
£166.55
ex VAT£199.86
inc. VAT
In stock
Price Break
10+
£148.23
19+
£139.90
29+
£138.24
39+
£136.57
49+
£134.91
74+
£133.24
99+
£124.91
199+
£123.25
249+
£121.58
499+
£119.92
999+
£116.59
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 48mm |
| A2 | 15mm |
| A3 | 12mm |
| B | 65.1mm |
| Da h8 | 135mm |
| J | 160mm |
| J1 | 113.1mm |
| L | 195mm |
| N | 19mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 56.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.9 kg |
