SKU: FYC50TF-SKF

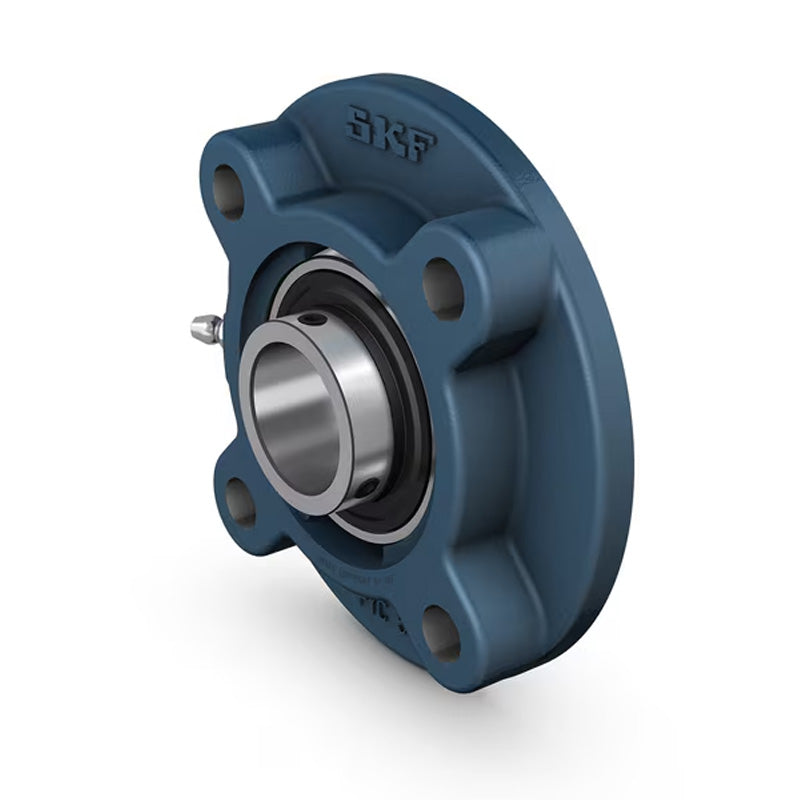

SKF FYC50TF Round Cast Housing with Grub Screw 50mm Insert
SKF FYC50TF Round Cast Housing with Grub Screw 50mm Insert
Regular price
£110.14
ex VAT£132.17inc. VAT
Regular price
Sale price
£110.14
ex VAT£132.17
inc. VAT
In stock
Price Break
10+
£98.03
20+
£92.52
30+
£91.42
40+
£90.32
50+
£89.22
75+
£88.12
100+
£82.61
200+
£81.51
250+
£80.41
500+
£79.30
1000+
£77.10
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 40mm |
| A2 | 14mm |
| A3 | 12mm |
| B | 51.6mm |
| Da h8 | 110mm |
| J | 138mm |
| J1 | 97.6mm |
| L | 165mm |
| N | 16mm |
| G | 14mm |
| s1 | 32.6mm |
| T | 42.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.8 kg |
