SKU: FY7/8TF-SKF
SKF FY7/8TF Square Cast Housing with Grub Screw 7/8 inch Insert
SKF FY7/8TF Square Cast Housing with Grub Screw 7/8 inch Insert
Regular price
£55.30
ex VAT£66.36inc. VAT
Regular price
Sale price
£55.30
ex VAT£66.36
inc. VAT
In stock
Price Break
10+
£49.22
20+
£46.45
30+
£45.90
40+
£45.35
50+
£44.79
75+
£44.24
100+
£41.48
200+
£40.92
250+
£40.37
500+
£39.82
1000+
£38.71
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- FY
- Bolt Hole Centres:
- 70mm

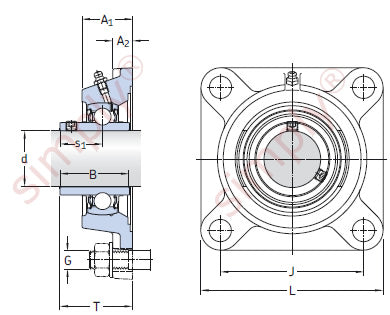

Technical
Technical
| d | 7/8 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| J | 70mm |
| L | 95mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.8 kg |
| Housing | Insert |
