SKU: FY2.TF/VA228-SKF

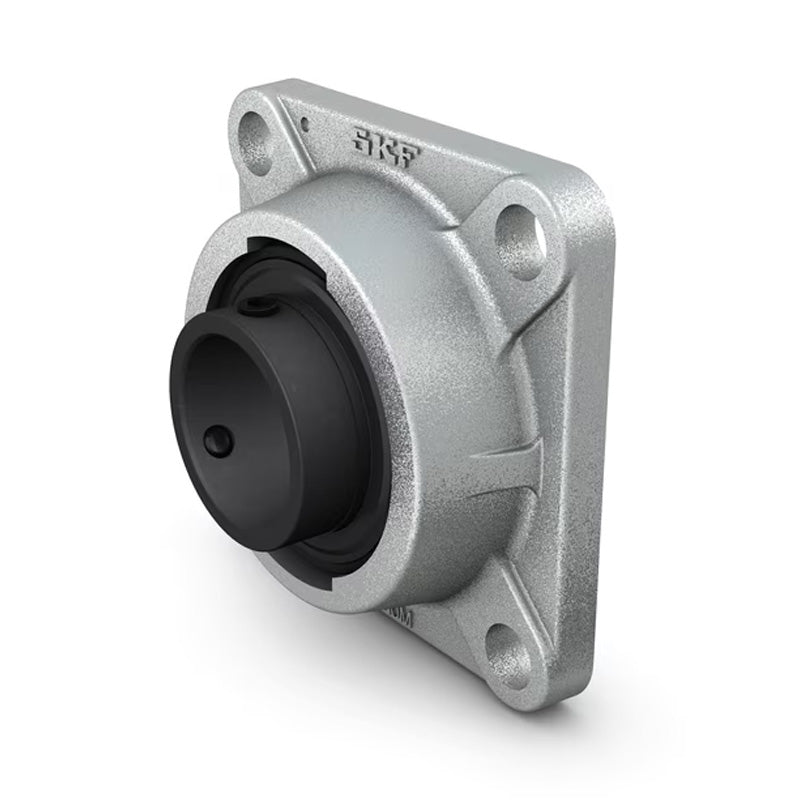

SKF FY2-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2inch
SKF FY2-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2inch
Regular price
£337.88
ex VAT£405.46inc. VAT
Regular price
Sale price
£337.88
ex VAT£405.46
inc. VAT
In stock
Price Break
10+
£300.71
19+
£283.82
29+
£280.44
39+
£277.06
49+
£273.68
74+
£270.30
99+
£253.41
199+
£250.03
249+
£246.65
499+
£243.27
999+
£236.52
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| G | 16mm |
| T | 64.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.75 kg |
