SKU: FY2.FM-SKF
SKF FY2FM Square Cast Housing with Eccentric Collar 2 inch Insert
SKF FY2FM Square Cast Housing with Eccentric Collar 2 inch Insert
Regular price
£143.31
ex VAT£171.97inc. VAT
Regular price
Sale price
£143.31
ex VAT£171.97
inc. VAT
In stock
Price Break
10+
£127.55
20+
£120.38
30+
£118.95
40+
£117.51
50+
£116.08
75+
£114.65
100+
£107.48
200+
£106.05
250+
£104.62
500+
£103.18
1000+
£100.32
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FY
- Bolt Hole Centres:
- 130mm

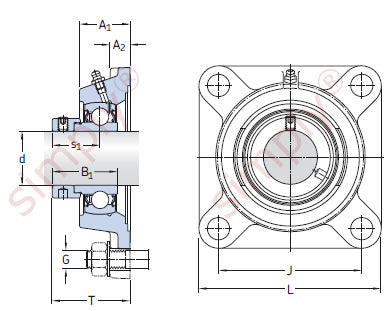

Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B1 | 48.4mm |
| J | 130mm |
| L | 162mm |
| G | 16mm |
| s1 | 36.4mm |
| T | 67.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.75 kg |
| Housing | Insert |
