SKU: FY2.3/16WF-SKF
SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
Regular price
£160.95
ex VAT£193.14inc. VAT
Regular price
Sale price
£160.95
ex VAT£193.14
inc. VAT
In stock
Price Break
10+
£143.25
20+
£135.20
30+
£133.59
40+
£131.98
50+
£130.37
75+
£128.76
100+
£120.72
200+
£119.11
250+
£117.50
500+
£115.89
1000+
£112.67
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical

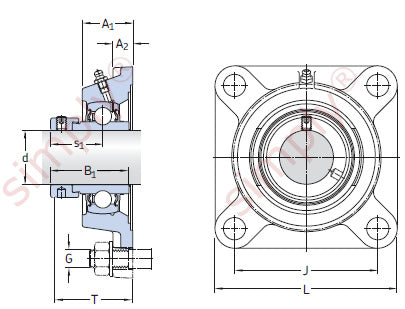

| d | 2-3/16 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B1 | 71.4mm |
| J | 130mm |
| L | 162mm |
| G | 16mm |
| s1 | 43.6mm |
| T | 74.6mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.85 kg |
| Housing | Insert |
