SKU: FS-M14-MB

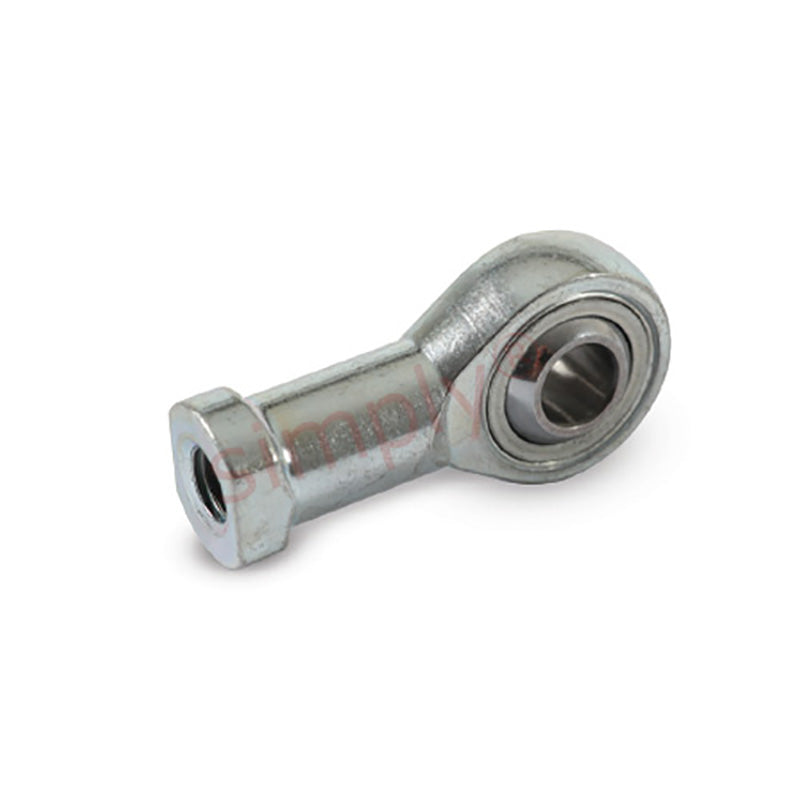

Branded FS-M14 Right Hand Metric Steel / PTFE Lined Maintenance Free Plain Female Rod End M14x2 Thread - Allow 7-10 Days
Branded FS-M14 Right Hand Metric Steel / PTFE Lined Maintenance Free Plain Female Rod End M14x2 Thread - Allow 7-10 Days
Regular price
£8.68
ex VAT£10.42inc. VAT
Regular price
Sale price
£8.68
ex VAT£10.42
inc. VAT
Equivalent to: PHS14EC
In stock
Price Break
10+
£7.73
19+
£7.29
29+
£7.20
39+
£7.12
49+
£7.03
74+
£6.94
99+
£6.51
199+
£6.42
249+
£6.34
499+
£6.25
999+
£6.08
Description
Description
|
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c Benefits: High shock loads, extended wear life, no maintenance |
Equivalent: PHS14EC
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M14x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE Lined
Technical
Technical
| Bore size | 14mm |
|---|---|
| Thread | M14x2 |
| W | 19mm |
| H | 13.5mm |
| D | 36mm |
| L1 | 57mm |
| L2 | 25mm |
| O | 16.8mm |
| AF | 22mm |
| Static load | 29200 N |
