SKU: FS-M06S-MB

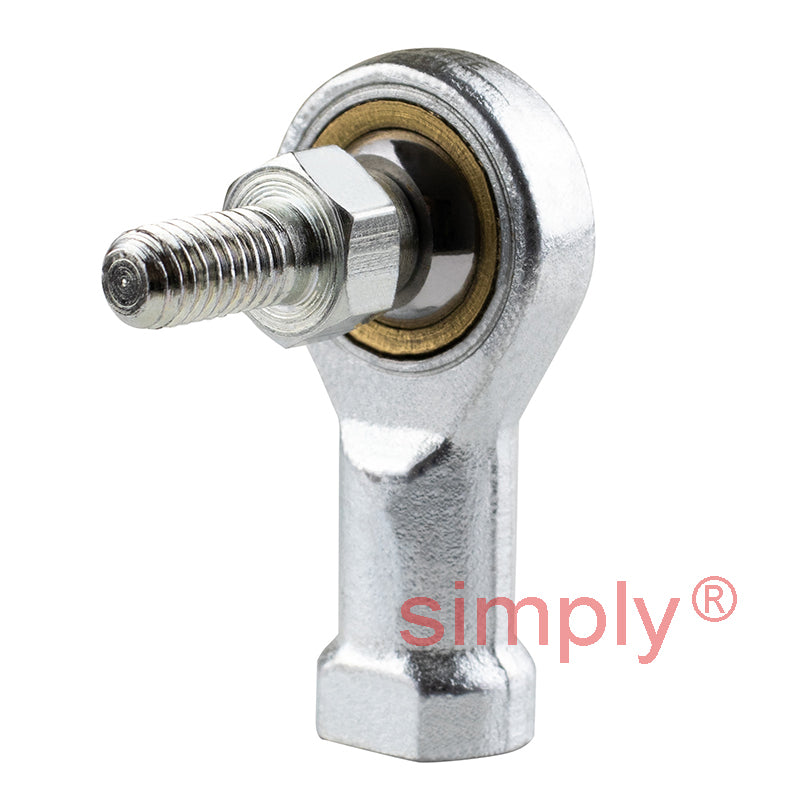

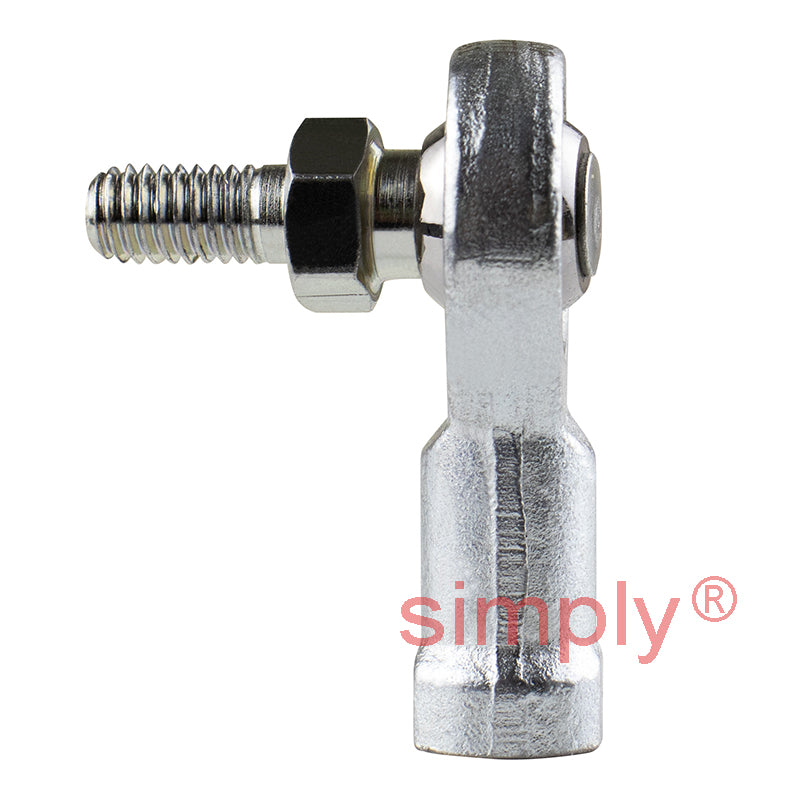

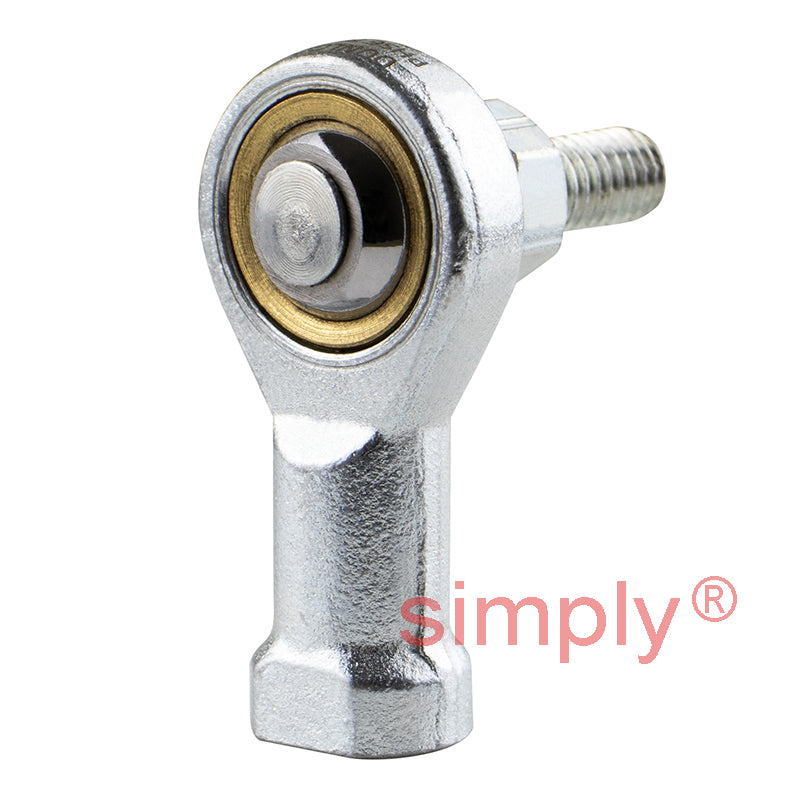

Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread

Name: Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread
Brand: Major Brand
SKU: FS-M06S-MB
Price: 11.00 GBP
Availability: InStock

£11.00 ex VAT£13.20inc. VAT

£11.00 ex VAT£13.20 inc. VAT

Sale Sold out

Equivalent to: PHS6+STUD

In stock

Price Break

10+ £9.79

19+ £9.24

29+ £9.13

39+ £9.02

49+ £8.91

74+ £8.80

99+ £8.25

199+ £8.14

249+ £8.03

499+ £7.92

999+ £7.70

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear). Outer race may feature a bronze or silver-coloured finish.
Benefits: High shock loads, extended wear life, no maintenance.

Equivalent: PHS6+STUD

Brand / Quality:: Major Brand - High Quality
Thread Size:: M6x1
Thread M / F:: Female
Thread Direction:: Right Hand
Material:: PTFE Lined

Technical

Stud size	M6
Thread	M6x1
A	12mm
B	12mm
C	10mm
K	10mm
Static load	1930 N
