SKU: FS-M05S-MB

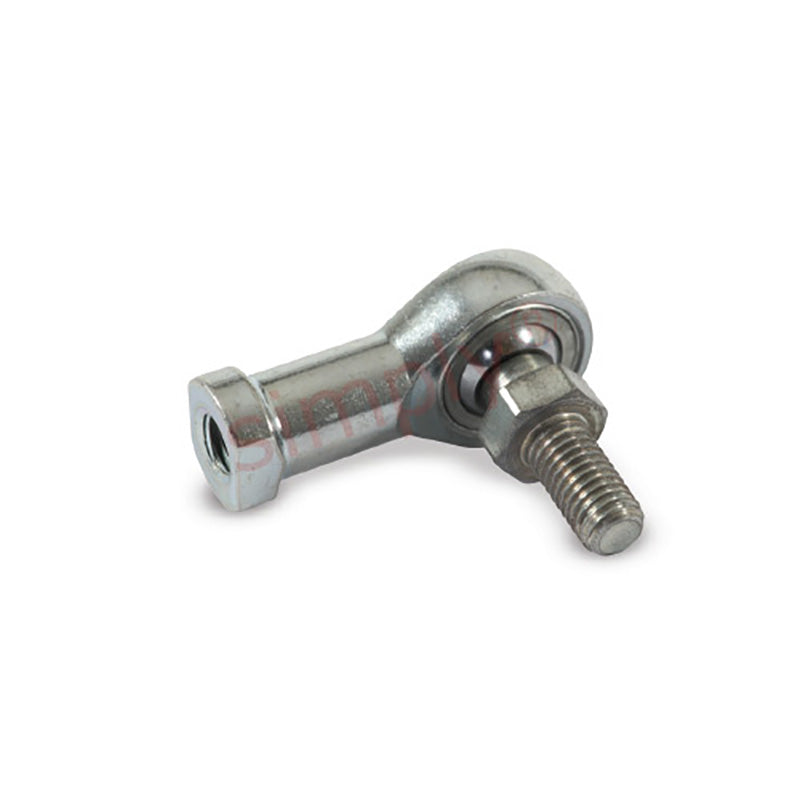

Branded FS-M05S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M5x0.8 Thread
Branded FS-M05S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M5x0.8 Thread
Regular price
£8.76
ex VAT£10.51inc. VAT
Regular price
Sale price
£8.76
ex VAT£10.51
inc. VAT
Equivalent to: PHS5+STUD
In stock
Price Break
10+
£7.80
19+
£7.36
29+
£7.27
39+
£7.18
49+
£7.10
74+
£7.01
99+
£6.57
199+
£6.48
249+
£6.39
499+
£6.31
999+
£6.13
Description
Description
|
FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear). Benefits: High shock loads, extended wear life, no maintenance |
Equivalent: PHS5+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| Stud size | M5 |
|---|---|
| Thread | M5x0.8 |
| A | 10mm |
| B | 10mm |
| C | 8mm |
| K | 9mm |
| Static load | 1200 N |
