SKU: FLN16-PBC

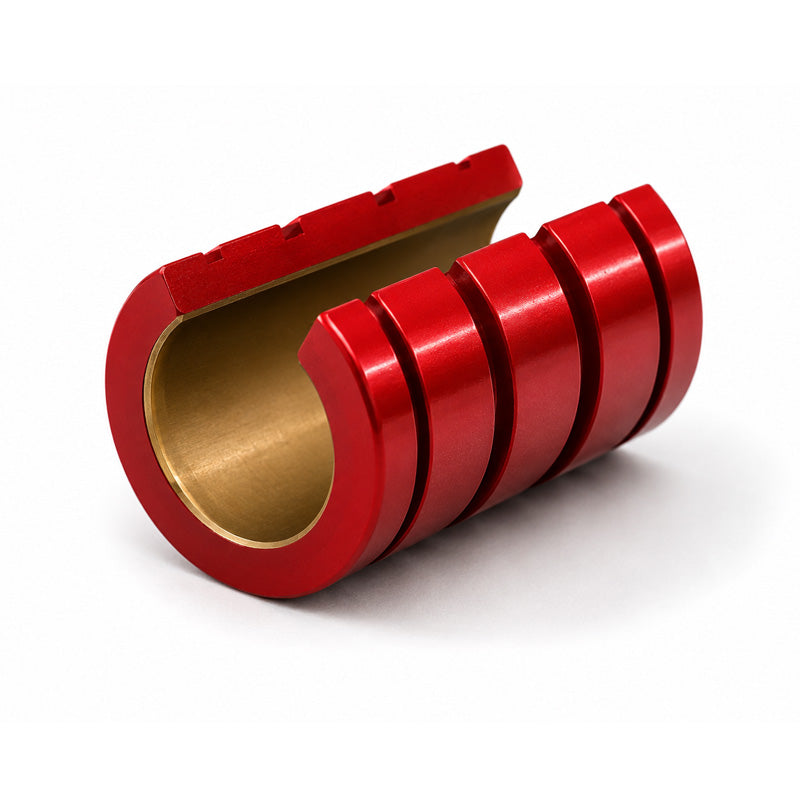

PBC FLN 16 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
PBC FLN 16 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
Regular price
£78.89
ex VAT£94.67inc. VAT
Regular price
Sale price
£78.89
ex VAT£94.67
inc. VAT
In stock
Price Break
10+
£70.21
19+
£66.27
29+
£65.48
39+
£64.69
49+
£63.90
74+
£63.11
99+
£59.17
199+
£58.38
249+
£57.59
499+
£56.80
999+
£55.22
Couldn't load pickup availability
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Length:
- 57.15mm = 2.25 (2-1/4) inch
Technical
Technical
| Inside Diameter (A) | 25.4mm = 1 inch |
|---|---|
| Outside Diameter (B) | 39.69mm = 1.563 (1-9/16) inch |
| Width (C) | 57.15mm = 2.25 (2-1/4) inch |
| Nominal Bore Size | 1 inch |
| Effective Surface Area (Square Inch) | 2.35 inch |
| Max Static Load | 31.33kN |
| Weight | 0.103kg |
