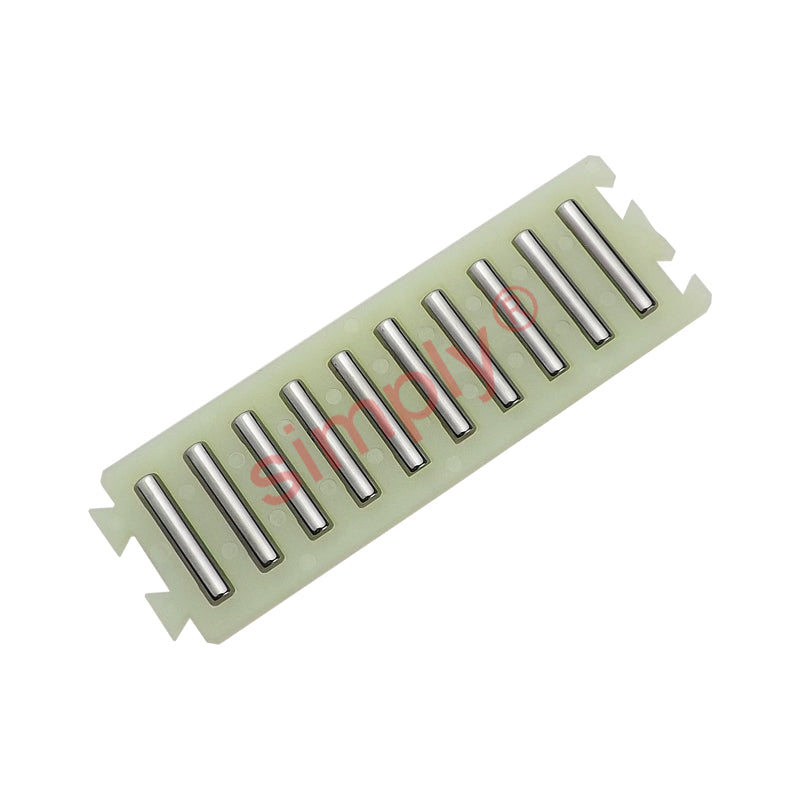

• INA FF2515 Needle Roller Flat Cage 15mm Width x 45mm Length
1 1

SKU: FF2515

INA FF2515 Needle Roller Flat Cage 15mm Width x 45mm Length

INA FF2515 Needle Roller Flat Cage 15mm Width x 45mm Length
£4.05 ex VAT£4.86inc. VAT
£4.05 ex VAT£4.86 inc. VAT
Sale Sold out

In stock

Price Break
10+ £3.60
19+ £3.40
29+ £3.36
39+ £3.32
49+ £3.28
74+ £3.24
99+ £3.04
199+ £3.00
249+ £2.96
499+ £2.92
999+ £2.84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
Brand / Quality:
INA - High Quality
Width:
15mm
Length:
45mm
Technical
--- Main Dimensions
l<sub>ke</sub> (Length) 45mm
D<sub>W</sub> (Rolling element diameter) 2.5mm
B (Width) 15mm
T (Cage Thickness) 2mm
C (Dynamic load capacity) 32.7 kN
C<sub>0</sub> (Static load capacity) 92.3 kN
Weight 0.038kg
--- Mounting Dimensions
E<sub>B</sub> 15.3mm (+0.2 Tolerance)
E<sub>B1</sub> 10mm
E<sub>H</sub> 2.2mm
--- Other
L<sub>W</sub> (Length rolling element) 9.8mm
a<sub>k</sub> 2.5mm
Z<sub>e</sub> (Number of rolling elements per row) 8
Associated Rail J4025, S4025, J5025, S5025
