SKU: FC50EC-RHP

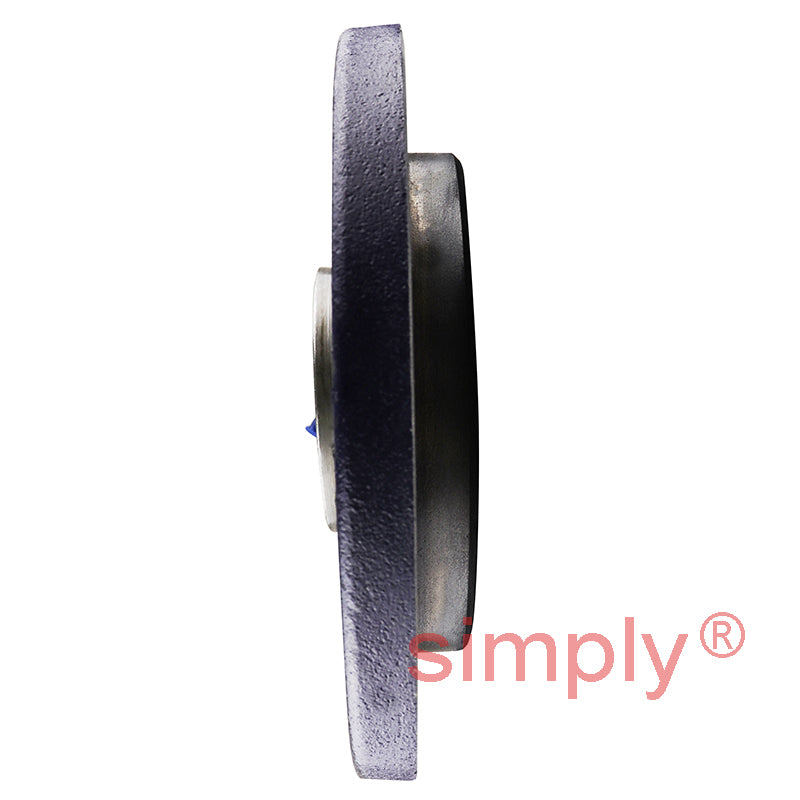

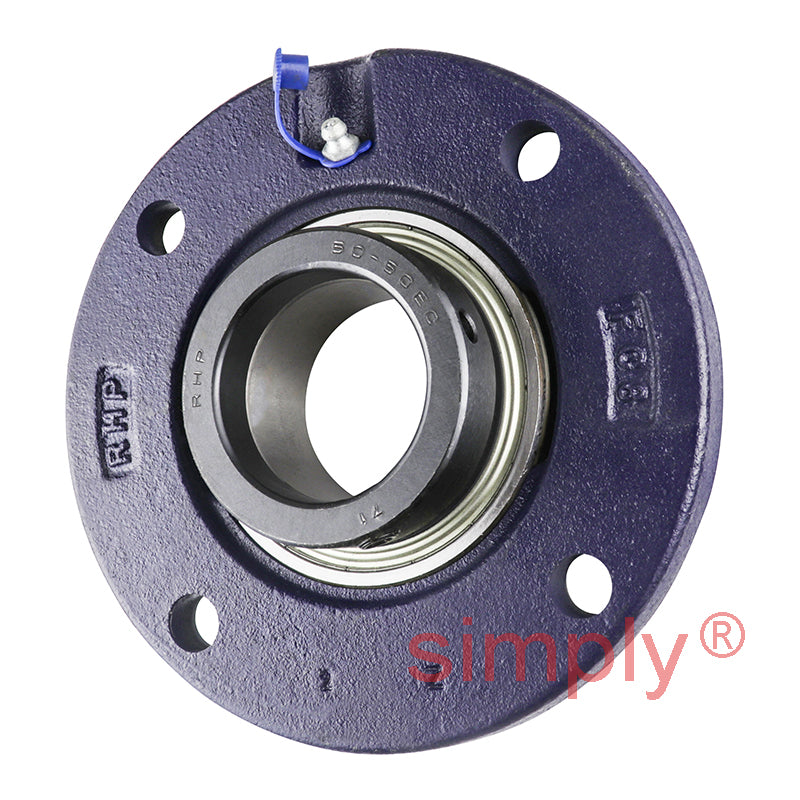

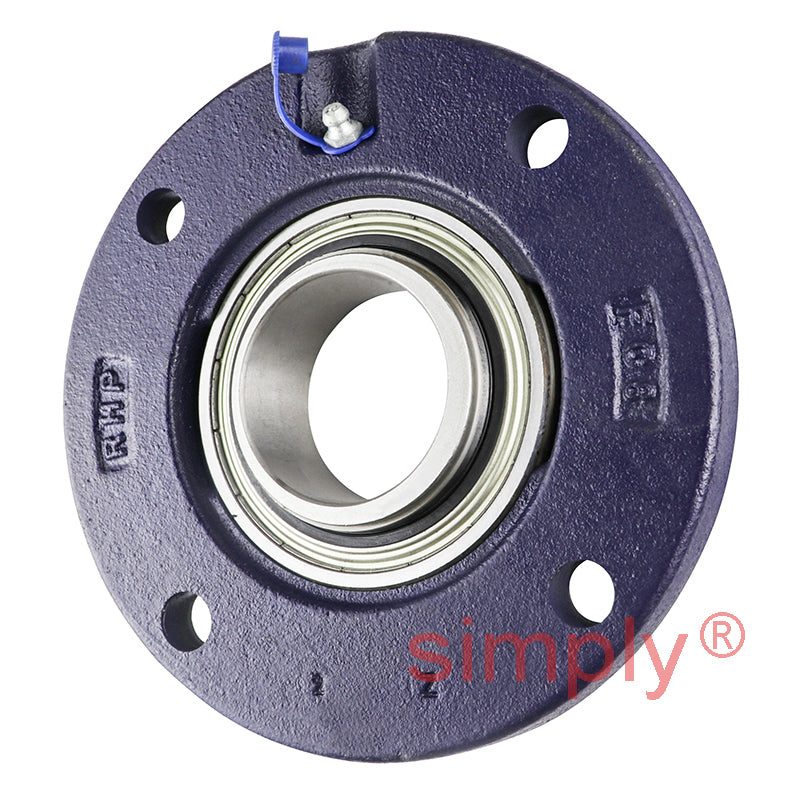

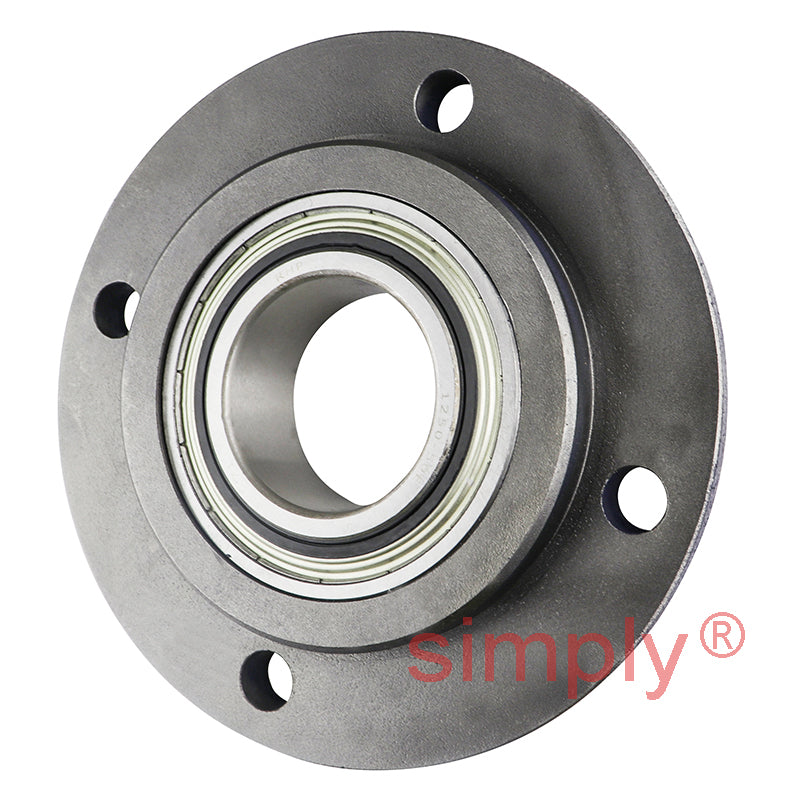

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
£97.12 ex VAT£116.54inc. VAT
£97.12 ex VAT£116.54 inc. VAT
Sale Sold out

In stock

Price Break
10+ £86.44
19+ £81.58
29+ £80.61
39+ £79.64
49+ £78.67
74+ £77.70
99+ £72.84
199+ £71.87
249+ £70.90
499+ £69.93
999+ £67.98
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

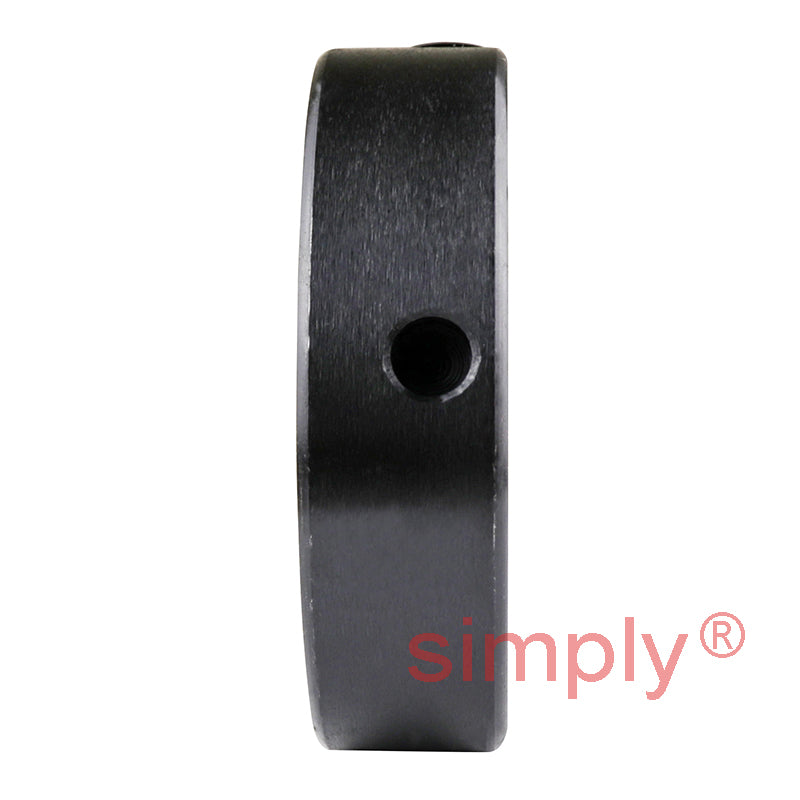

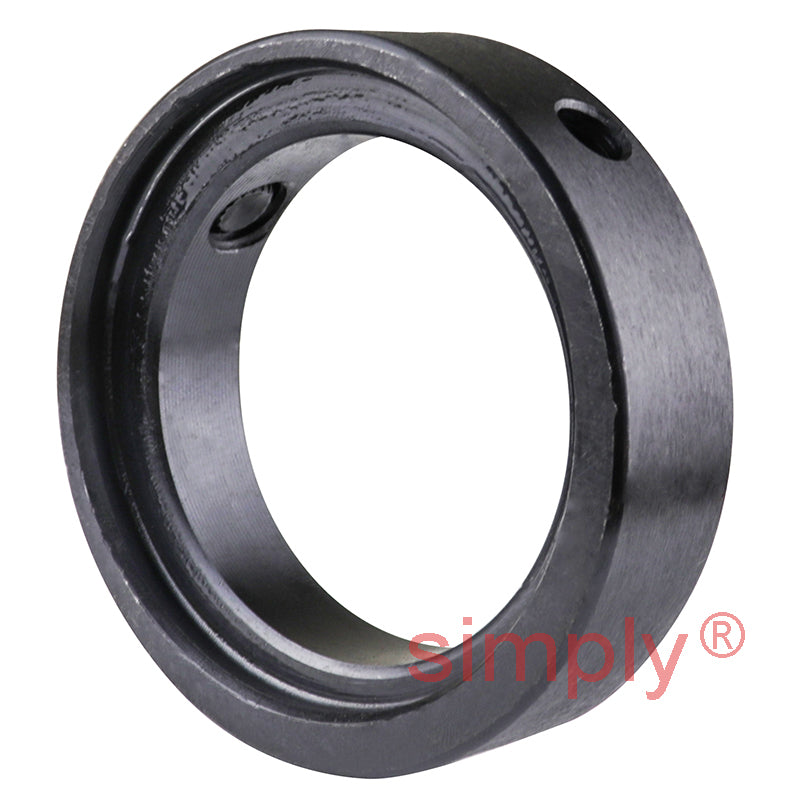

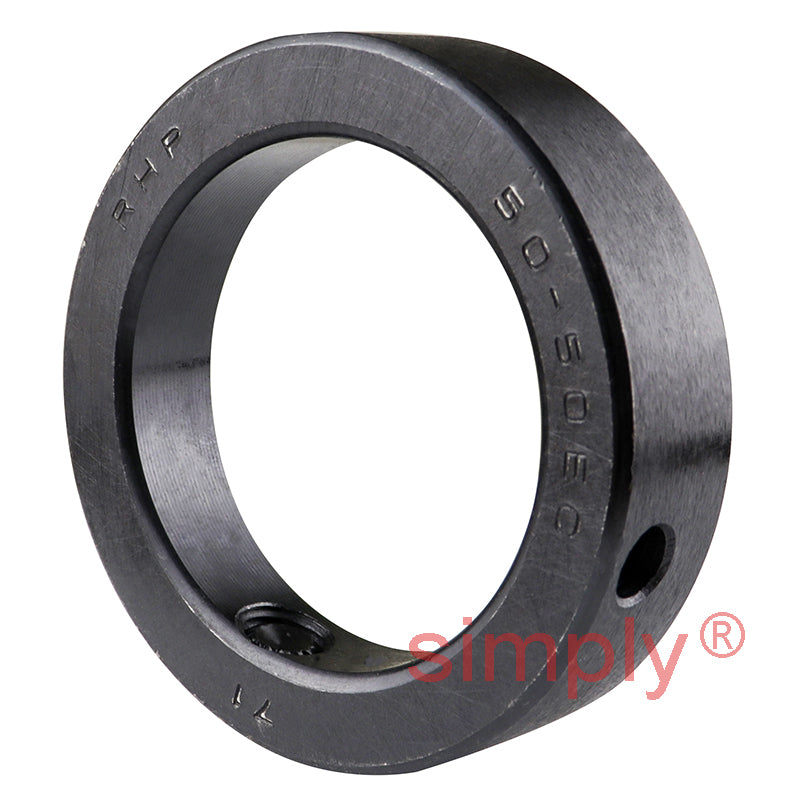

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
FC
Pitch Circle Diameter:
135mm
Technical
Bore 50mm
L 165mm
H 110mm
J 135mm
G 12mm
A 25mm
A2 31.63mm
A5 13mm
B2 43.73mm
s2 24.64mm
d2 69.85mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
