SKU: FC45EC-RHP

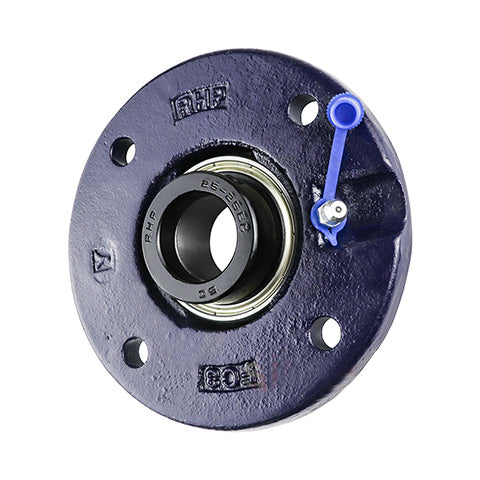

RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
£89.50
ex VAT£107.40inc. VAT
Regular price
Sale price
£89.50
ex VAT£107.40
inc. VAT
In stock
Price Break
10+
£79.66
19+
£75.18
29+
£74.29
39+
£73.39
49+
£72.50
74+
£71.60
99+
£67.13
199+
£66.23
249+
£65.34
499+
£64.44
999+
£62.65
Couldn't load pickup availability
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A2 | 30.59mm |
| A5 | 12mm |
| B2 | 43.64mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
