SKU: FC45DEC-RHP

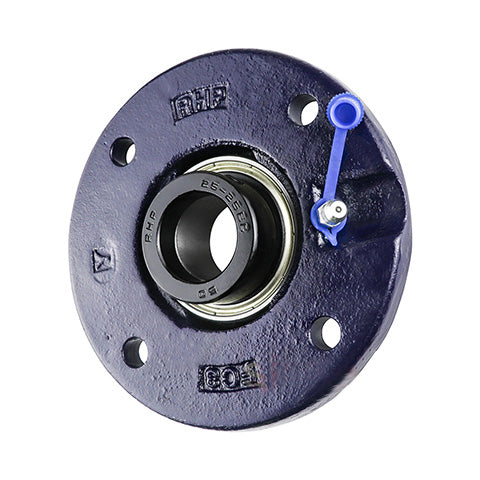

RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
£97.75
ex VAT£117.30inc. VAT
Regular price
Sale price
£97.75
ex VAT£117.30
inc. VAT
In stock
Price Break
10+
£87.00
20+
£82.11
30+
£81.14
40+
£80.16
50+
£79.18
75+
£78.20
100+
£73.32
200+
£72.34
250+
£71.36
500+
£70.38
1000+
£68.43
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A3 | 32.88mm |
| A5 | 12mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
