RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
£77.21
ex VAT£92.65inc. VAT
Regular price
Sale price
£77.21
ex VAT£92.65
inc. VAT
In stock
Price Break
10+
£68.72
20+
£64.86
30+
£64.09
40+
£63.31
50+
£62.54
75+
£61.77
100+
£57.91
200+
£57.14
250+
£56.37
500+
£55.59
1000+
£54.05
Share this product
Description
Description
|

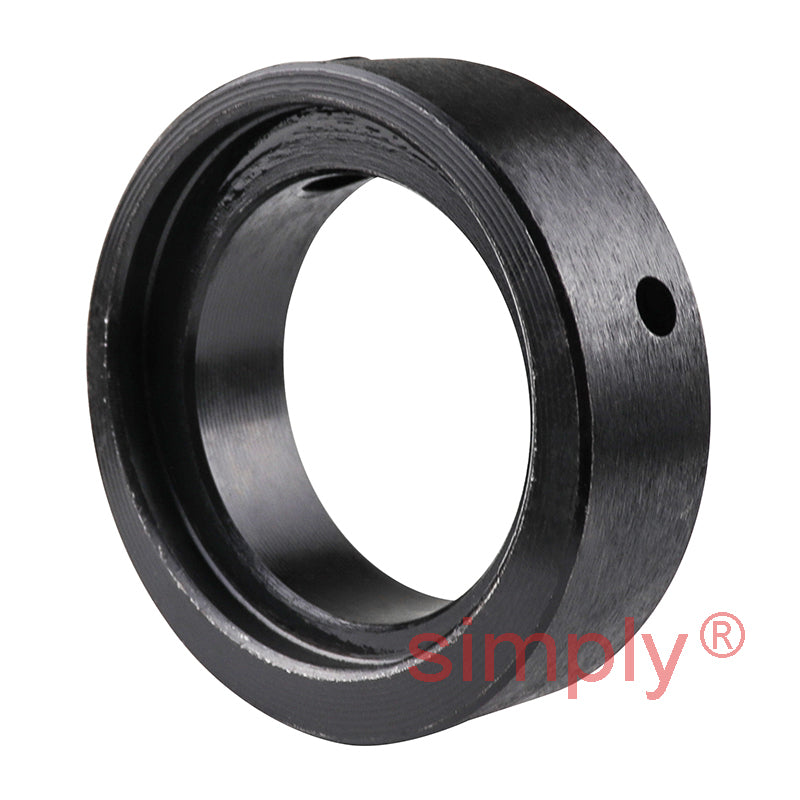

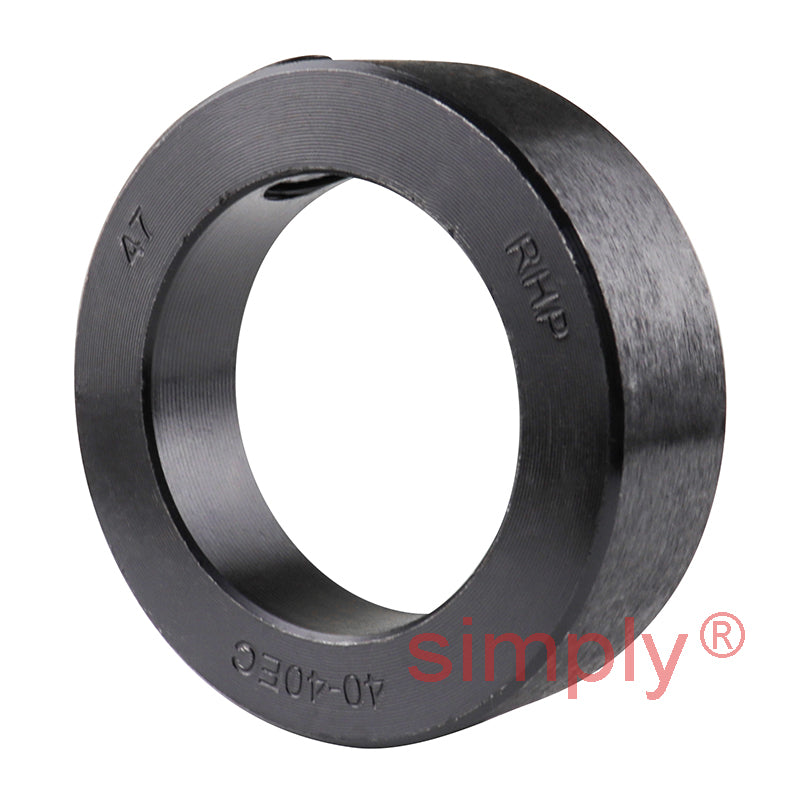

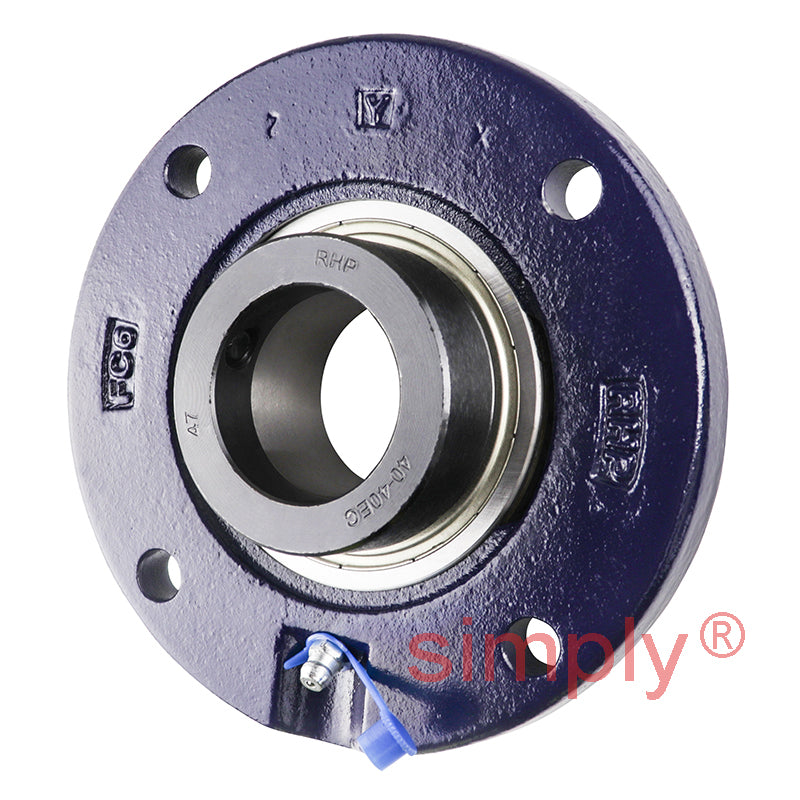

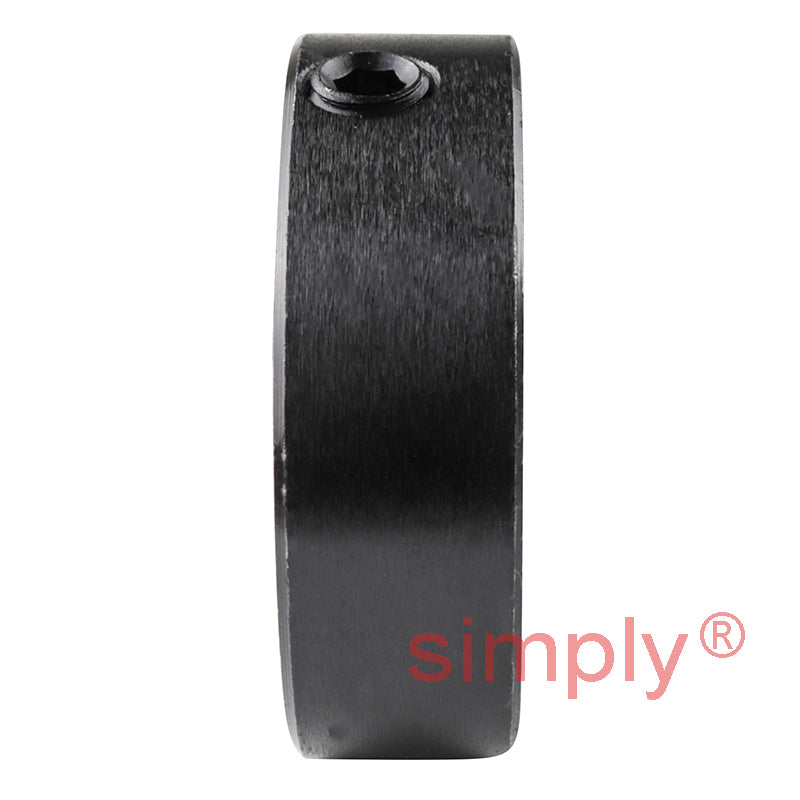

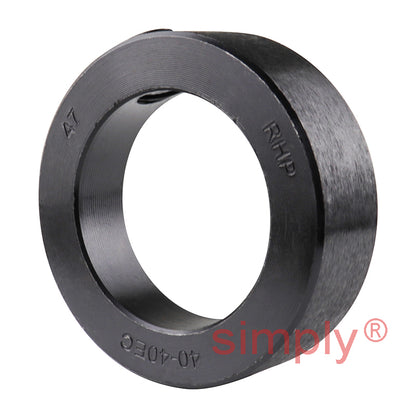

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A2 | 31.59mm |
| A5 | 11.5mm |
| B2 | 43.64mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
