SKU: FC40A-RHP

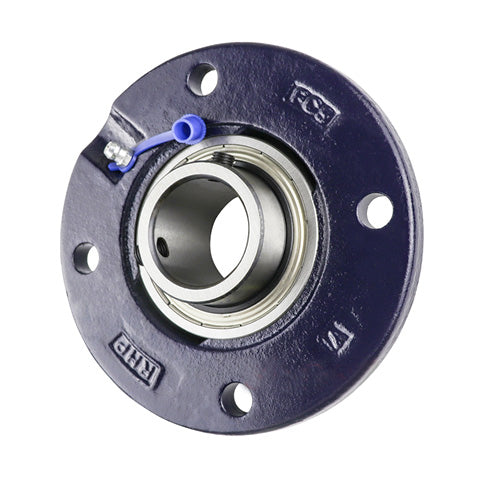

RHP FC40A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
£71.80
ex VAT£86.16inc. VAT
Regular price
Sale price
£71.80
ex VAT£86.16
inc. VAT
In stock
Price Break
10+
£63.90
20+
£60.31
30+
£59.59
40+
£58.87
50+
£58.16
75+
£57.44
100+
£53.85
200+
£53.13
250+
£52.41
500+
£51.69
1000+
£50.26
Share this product
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A1 | 29.18mm |
| A5 | 11.5mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40AG+insonly">1240-40AG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
