SKU: FC30DEC-RHP

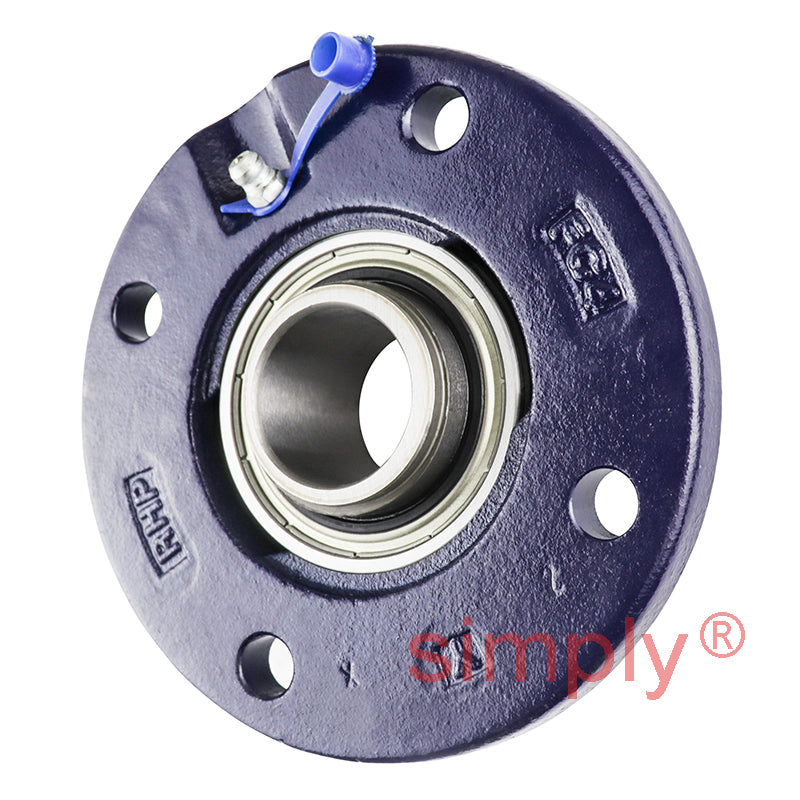

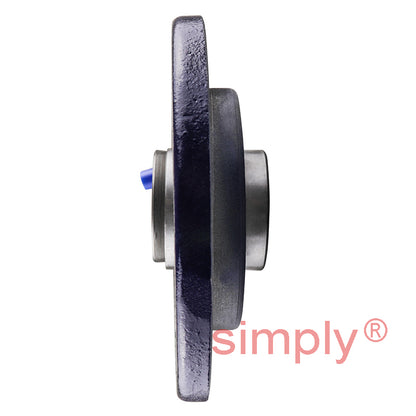

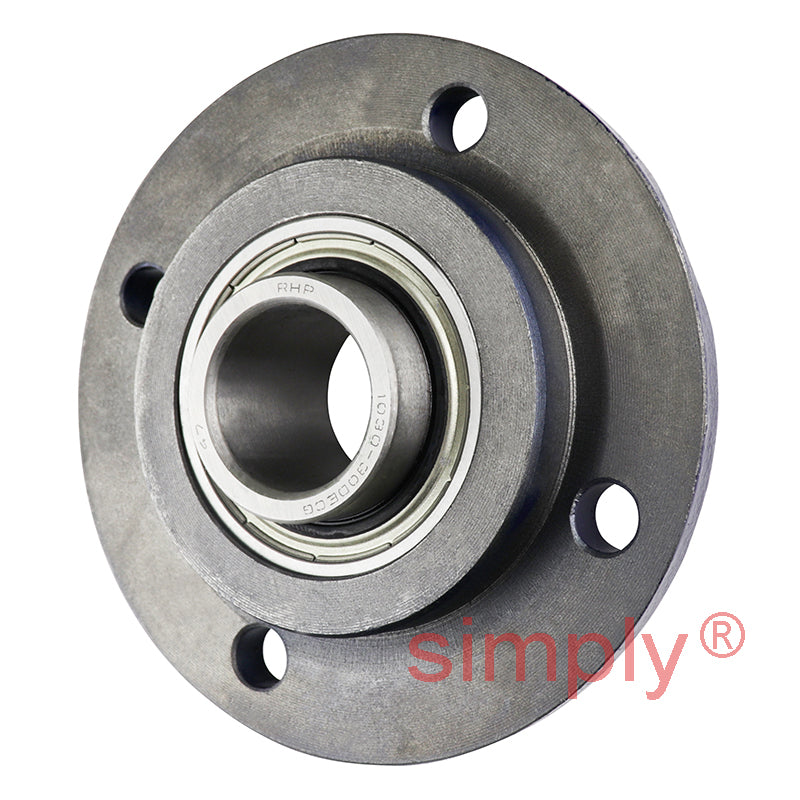

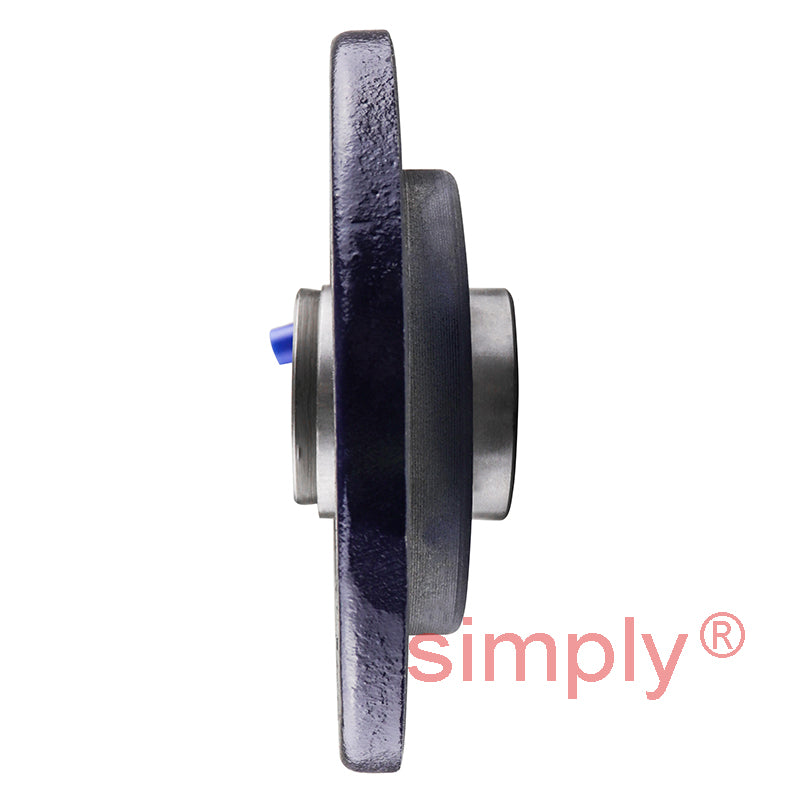

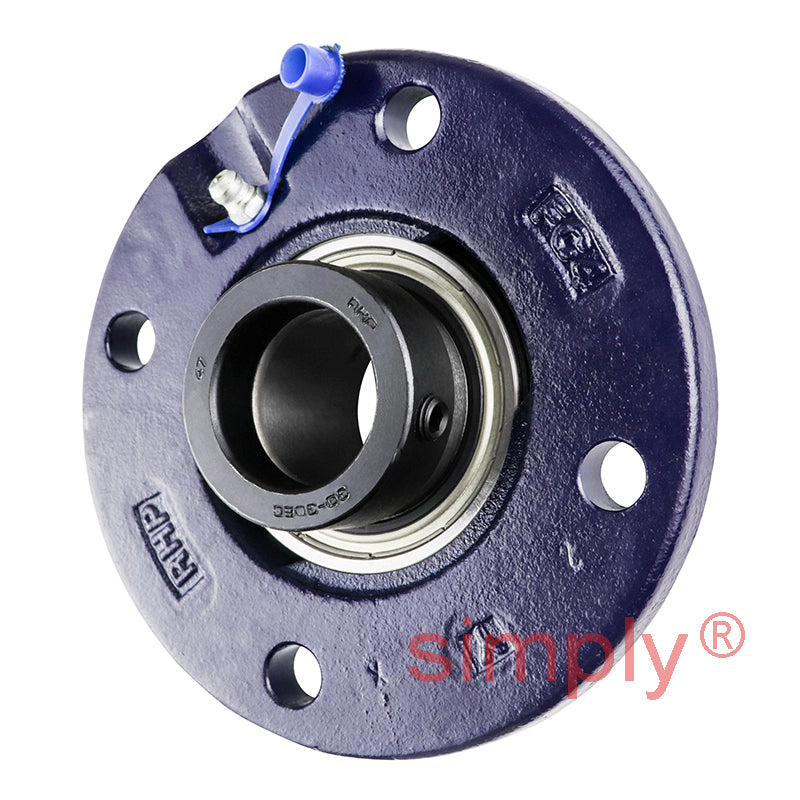

RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
£62.04
ex VAT£74.45inc. VAT
Regular price
Sale price
£62.04
ex VAT£74.45
inc. VAT
In stock
Price Break
10+
£55.21
20+
£52.11
30+
£51.49
40+
£50.87
50+
£50.25
75+
£49.63
100+
£46.53
200+
£45.91
250+
£45.29
500+
£44.67
1000+
£43.43
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- FC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 125mm |
| H | 80mm |
| J | 100mm |
| G | 10mm |
| A | 20.5mm |
| A3 | 28.1mm |
| A5 | 9.5mm |
| B3 | 48.42mm |
| s2 | 18.32mm |
| d2 | 44.45mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
