SKU: FC2R-RHP

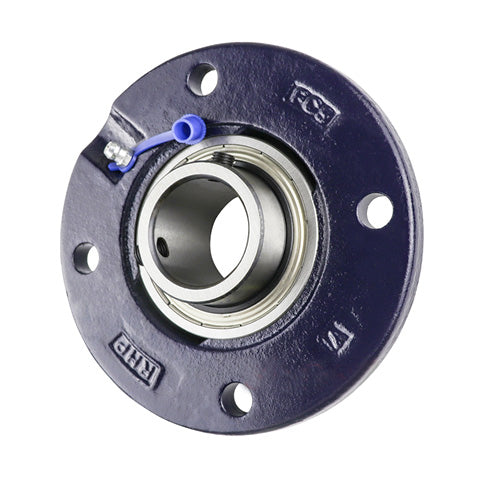

RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
Regular price
£105.54
ex VAT£126.65inc. VAT
Regular price
Sale price
£105.54
ex VAT£126.65
inc. VAT
In stock
Price Break
10+
£93.93
20+
£88.65
30+
£87.60
40+
£86.54
50+
£85.49
75+
£84.43
100+
£79.15
200+
£78.10
250+
£77.04
500+
£75.99
1000+
£73.88
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FC
- Pitch Circle Diameter:
- 135.001mm = 5.315 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 6.496 inch |
| H | 4.331 inch |
| J | 5.315 inch |
| G | 0.5 inch |
| A | 0.984 inch |
| A1 | 1.241 inch |
| A5 | 0.512 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
