SKU: FC25EC-RHP

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
£46.19 ex VAT£55.43inc. VAT
£46.19 ex VAT£55.43 inc. VAT
Sale Sold out

In stock

Price Break
10+ £41.11
19+ £38.80
29+ £38.34
39+ £37.88
49+ £37.41
74+ £36.95
99+ £34.64
199+ £34.18
249+ £33.72
499+ £33.26
999+ £32.33
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

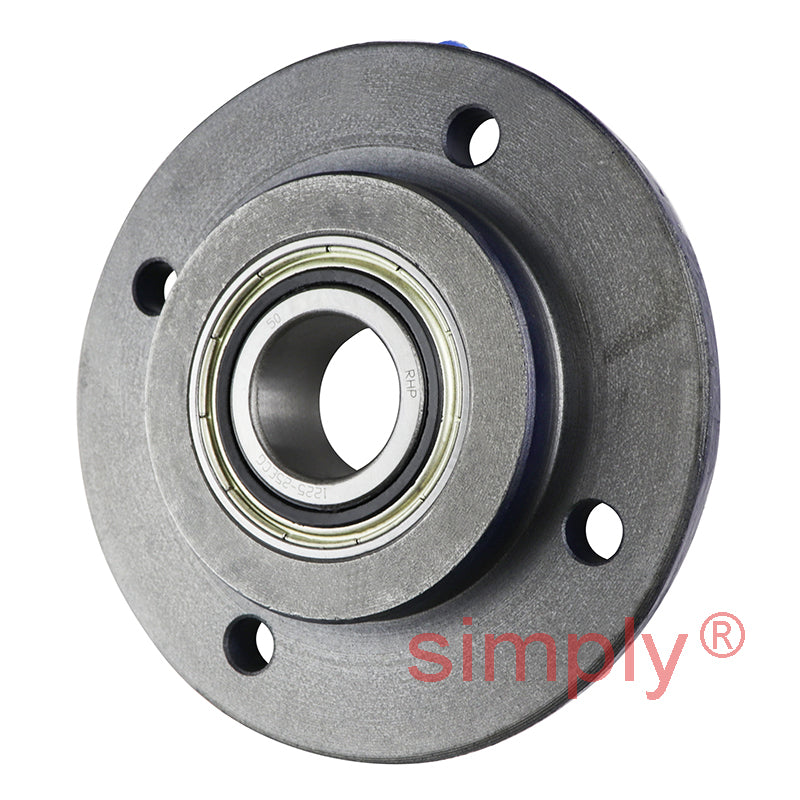

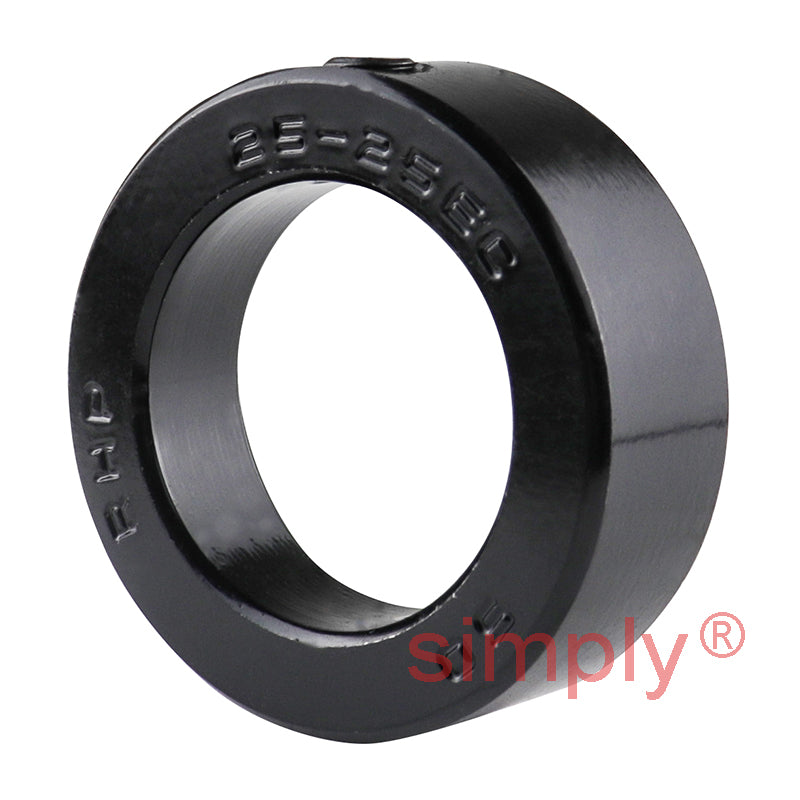

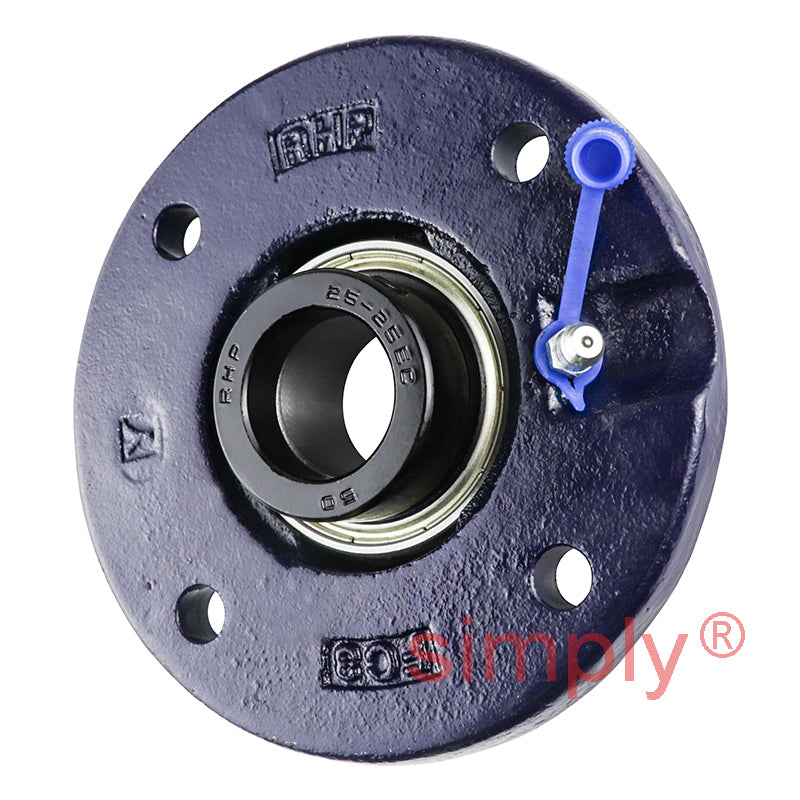

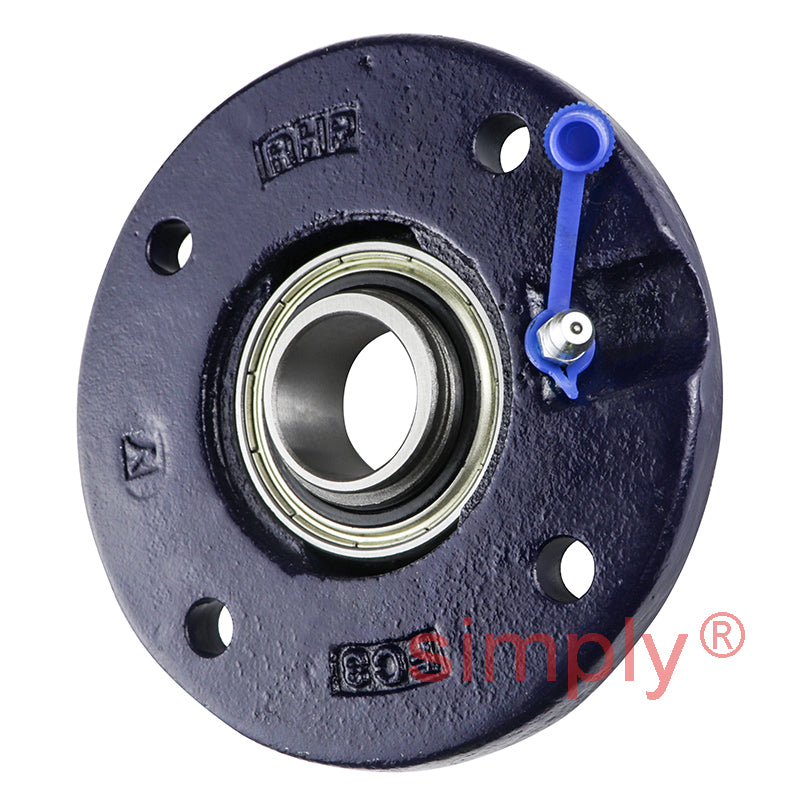

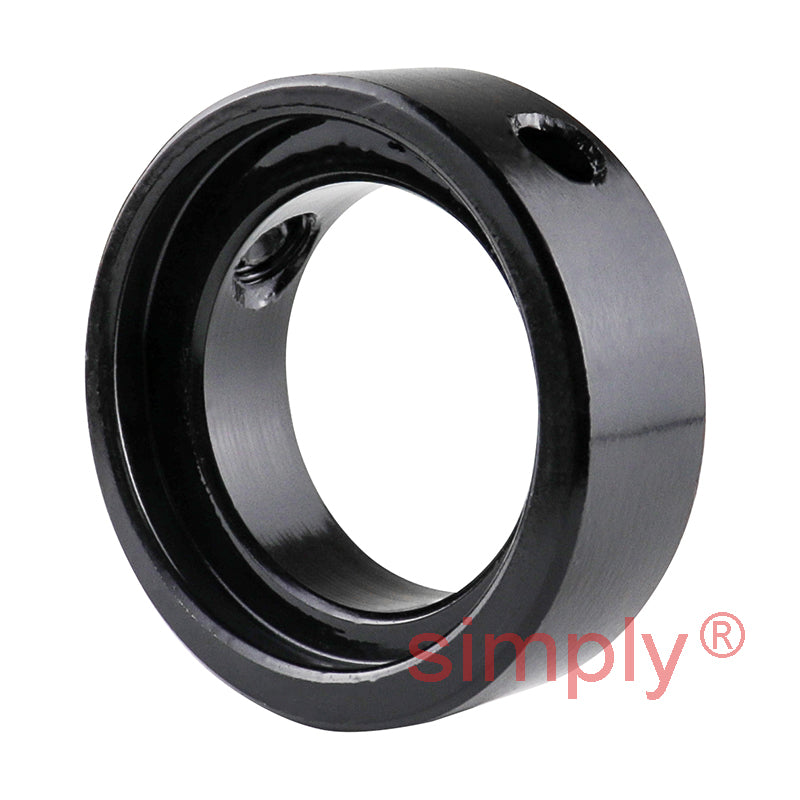

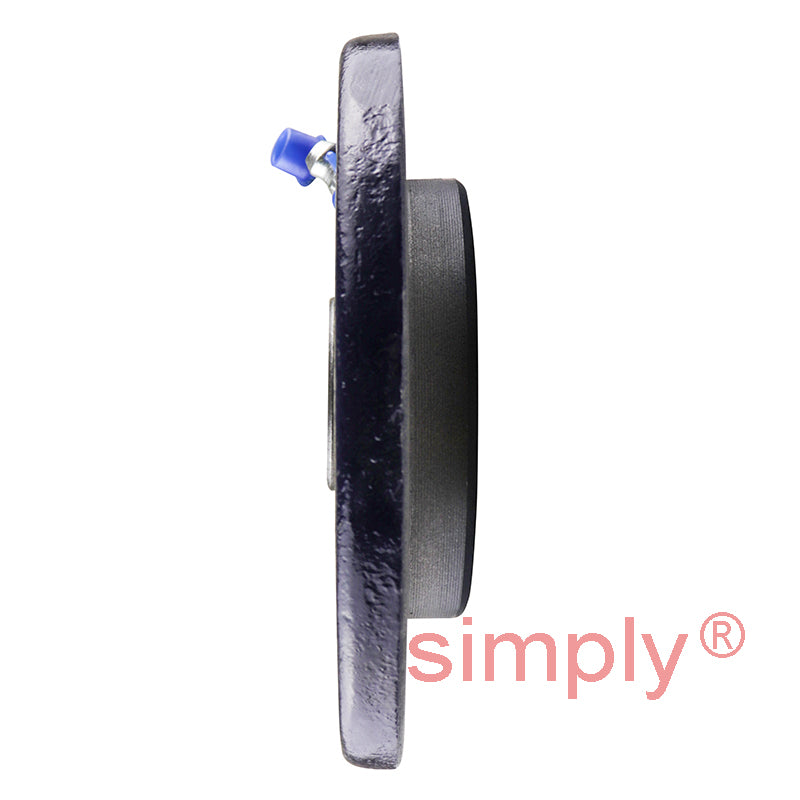

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
FC
Pitch Circle Diameter:
90mm
Technical
Bore 25mm
L 115mm
H 70mm
J 90mm
G 8mm
A 19mm
A2 20.86mm
A5 9mm
B2 30.92mm
s2 17.49mm
d2 38.1mm
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
