SKU: FC25-RHP

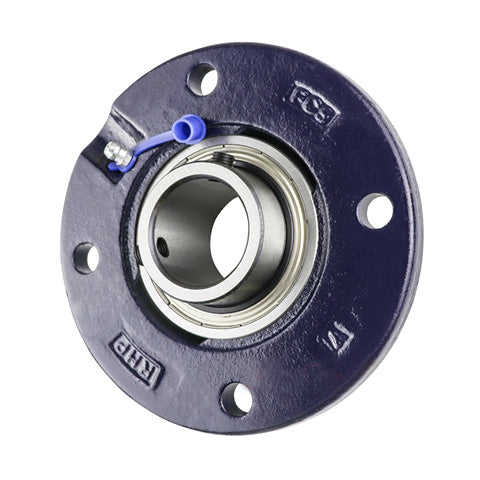

RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
£45.12
ex VAT£54.14inc. VAT
Regular price
Sale price
£45.12
ex VAT£54.14
inc. VAT
In stock
Price Break
10+
£40.16
20+
£37.90
30+
£37.45
40+
£37.00
50+
£36.55
75+
£36.09
100+
£33.84
200+
£33.39
250+
£32.94
500+
£32.49
1000+
£31.58
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A1 | 17.34mm |
| A5 | 9mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
