• RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
1 1

SKU: FC20EC-RHP

RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
£40.48 ex VAT£48.58inc. VAT
£40.48 ex VAT£48.58 inc. VAT
Sale Sold out

In stock

Price Break
10+ £36.03
19+ £34.00
29+ £33.60
39+ £33.19
49+ £32.79
74+ £32.38
99+ £30.36
199+ £29.96
249+ £29.55
499+ £29.15
999+ £28.34
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

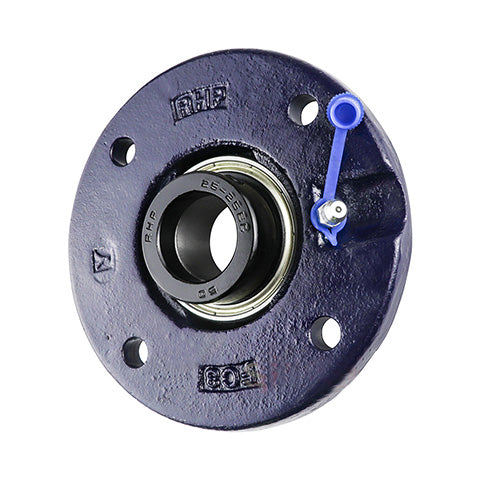

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
FC
Pitch Circle Diameter:
78mm
Technical
Bore 20mm
L 100mm
H 62mm
J 78mm
G 8mm
A 17mm
A2 21.45mm
A5 8mm
B2 30.92mm
s2 17.12mm
d2 33.3mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
