SKU: FB-M10S-MB

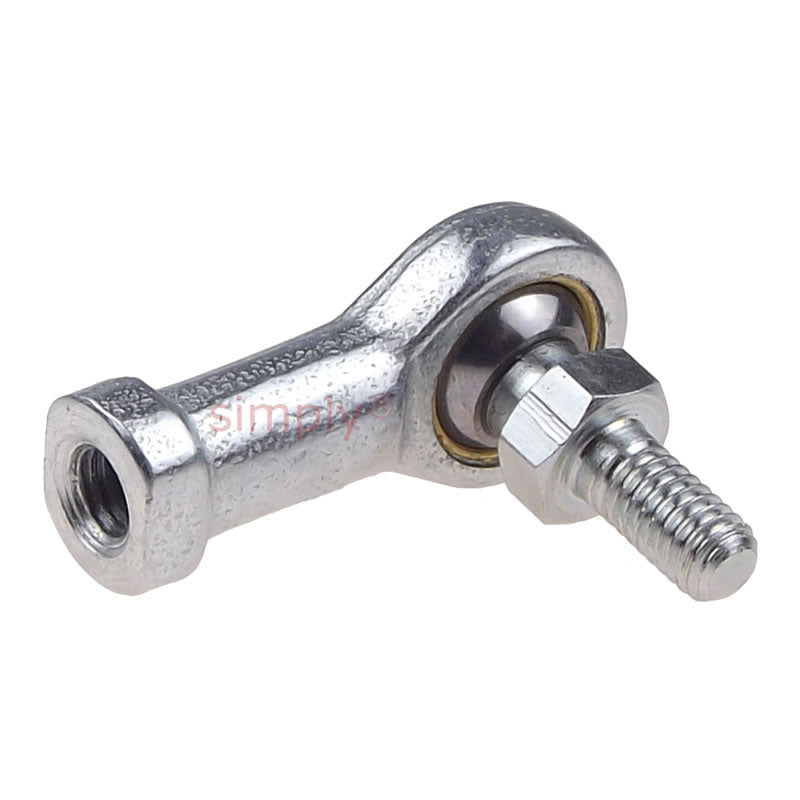

Branded FB-M10S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread

Name: Branded FB-M10S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Brand: Major Brand
SKU: FB-M10S-MB
Price: 13.79 GBP
Availability: InStock

£13.79 ex VAT£16.55inc. VAT

£13.79 ex VAT£16.55 inc. VAT

Sale Sold out

Equivalent to: PHS10+STUD

In stock

Price Break

10+ £12.28

19+ £11.59

29+ £11.45

39+ £11.31

49+ £11.17

74+ £11.04

99+ £10.35

199+ £10.21

249+ £10.07

499+ £9.93

999+ £9.66

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear).
Benefits: Low friction, extended wear life

Equivalent: PHS10+STUD

Brand / Quality:: Major Brand - High Quality
Thread Size:: M10x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Material:: Bronze Lined

Technical

Stud size	M10
Thread	M10x1.5
A	20mm
B	20mm
C	18mm
K	17mm
Static load	4240 N
