SKU: FB-08-MB

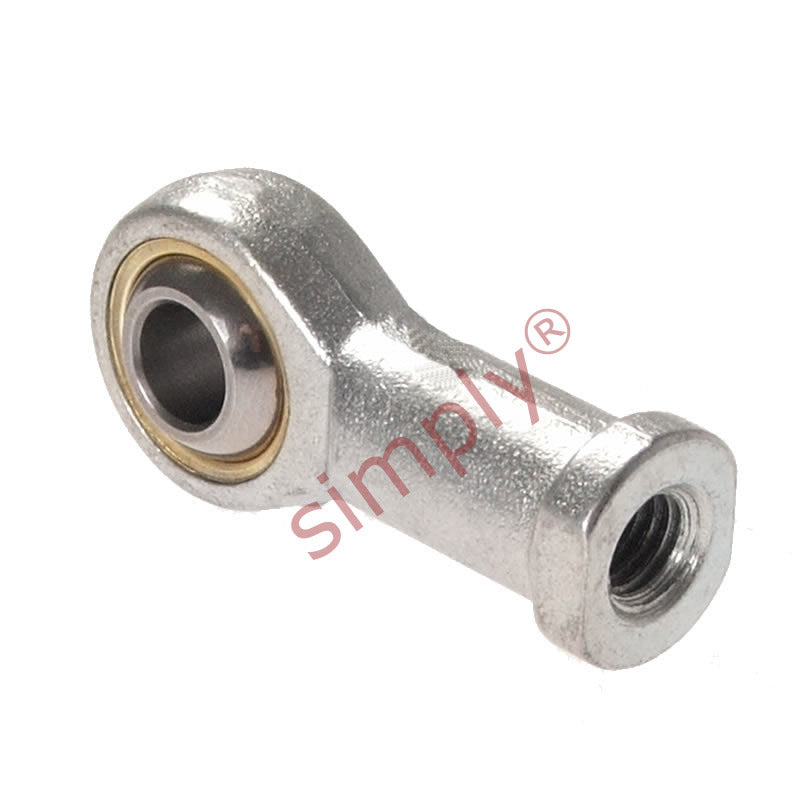

Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
Regular price
£8.86
ex VAT£10.63inc. VAT
Regular price
Sale price
£8.86
ex VAT£10.63
inc. VAT
In stock
Price Break
10+
£7.89
19+
£7.44
29+
£7.35
39+
£7.27
49+
£7.18
74+
£7.09
99+
£6.65
199+
£6.56
249+
£6.47
499+
£6.38
999+
£6.20
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/2 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 1/2 inch |
|---|---|
| Thread | 1/2 UNF |
| W | 0.652 inch |
| H | 0.5 inch |
| D | 1.312 inch |
| L1 | 2.125 inch |
| L2 | 1.187 inch |
| O | 0.7 inch |
| AF | 0.75 inch |
| Static load | 19545 N |
